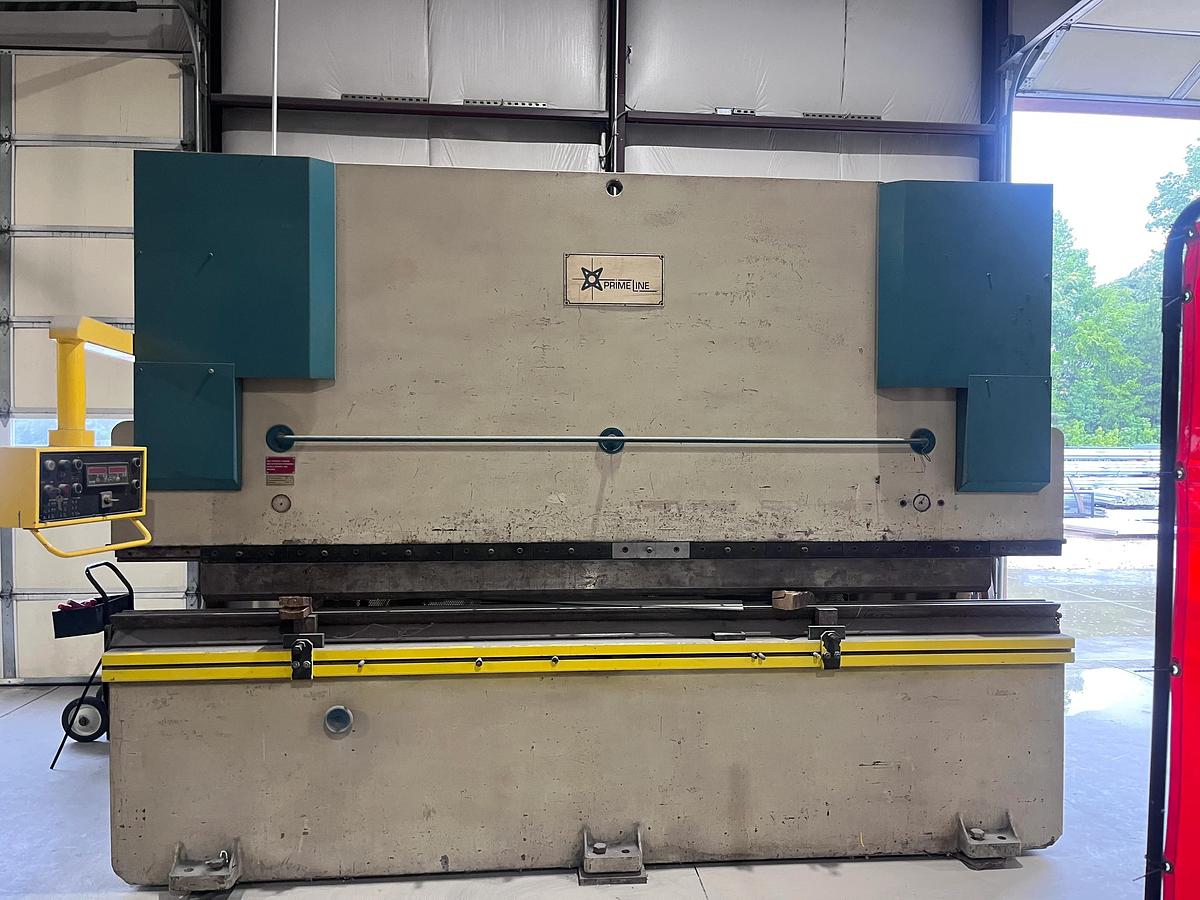

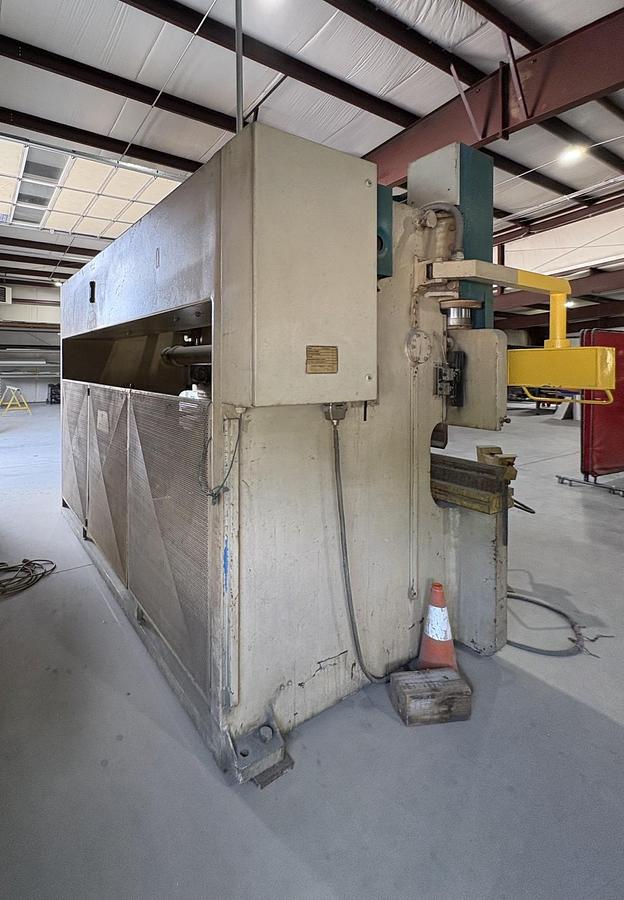

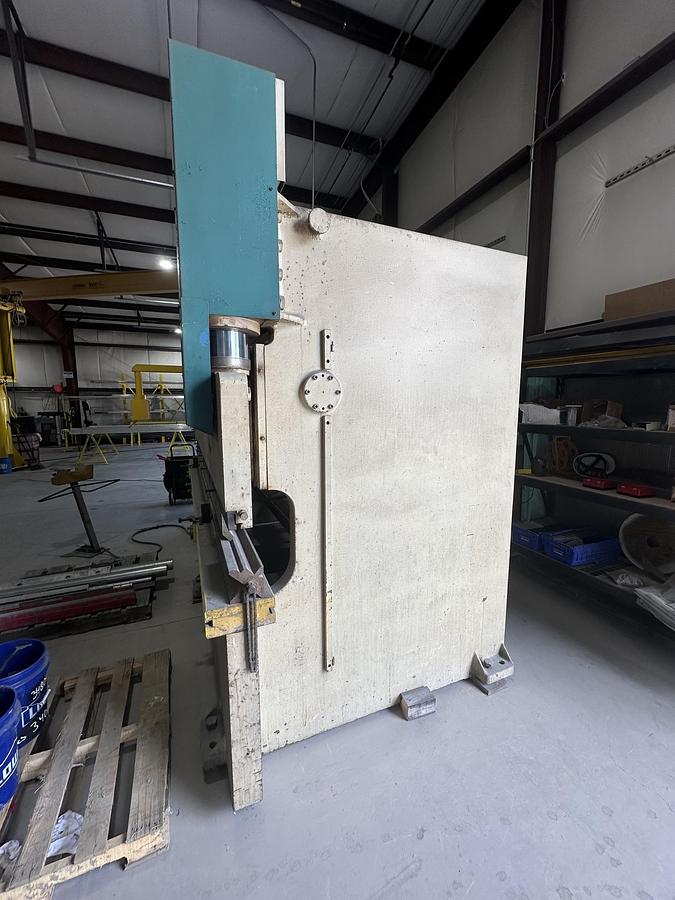

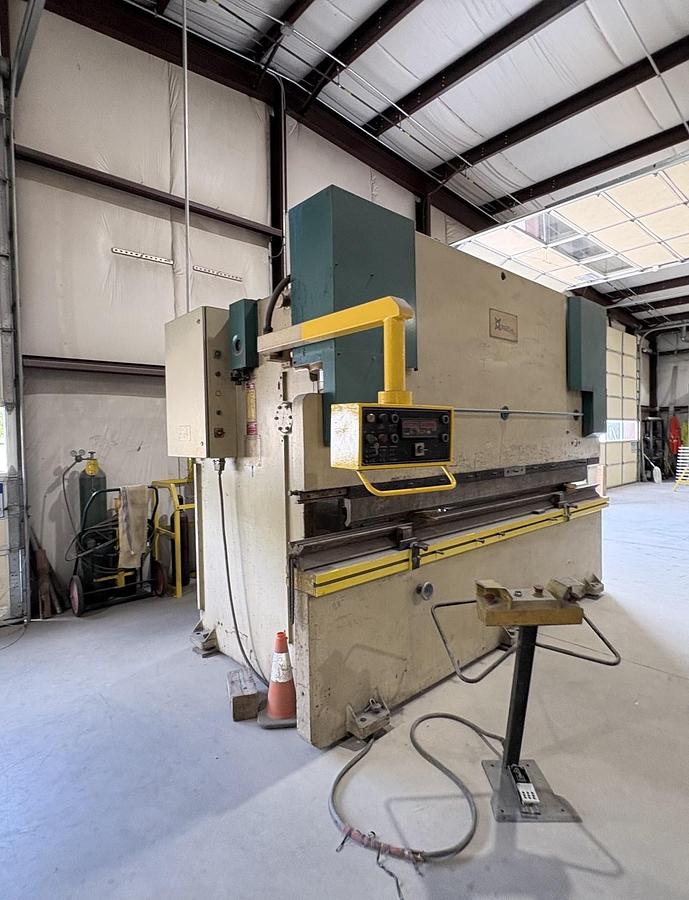

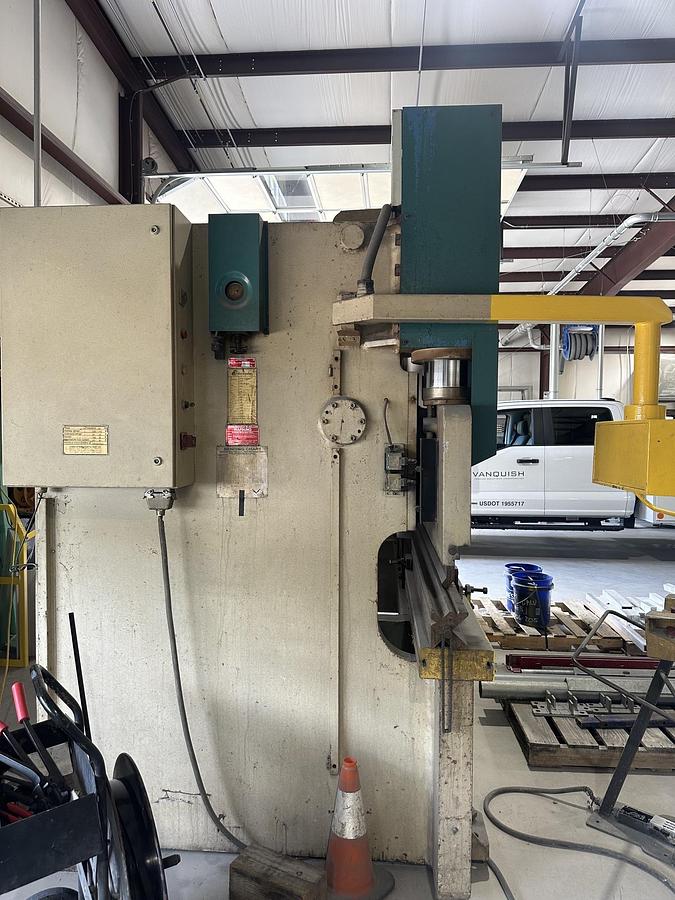

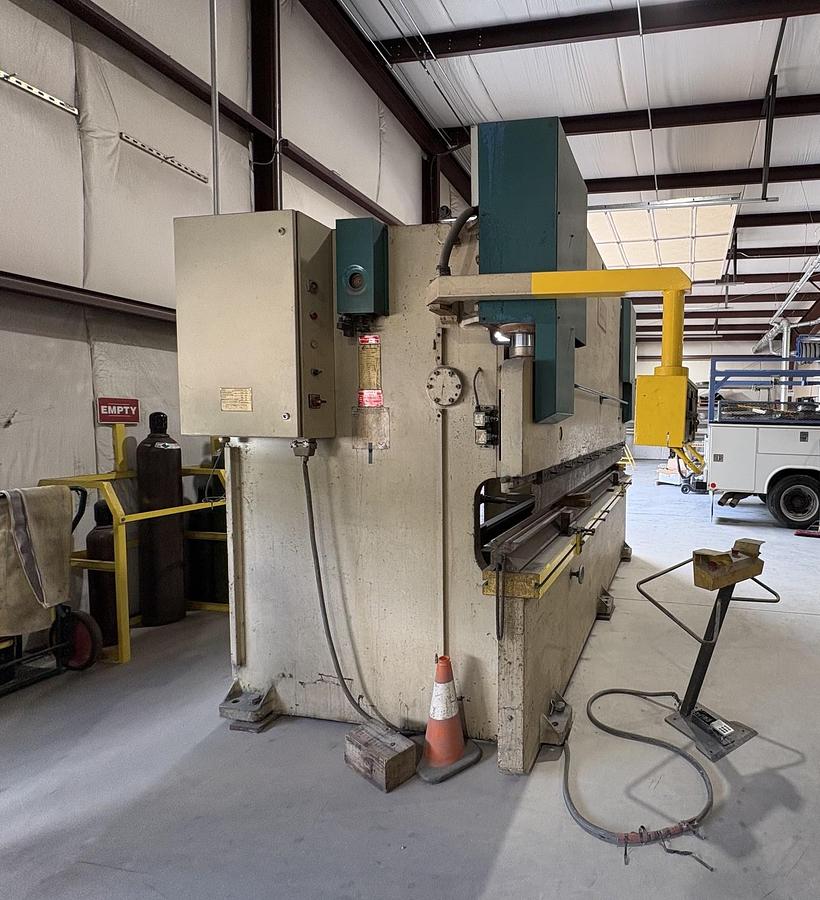

1997 DURMA HAP 37200 Press Brake
1997 DURMA HAP 37200 Press Brake
Contact us for price
or
Call (828) 241-1701
Description

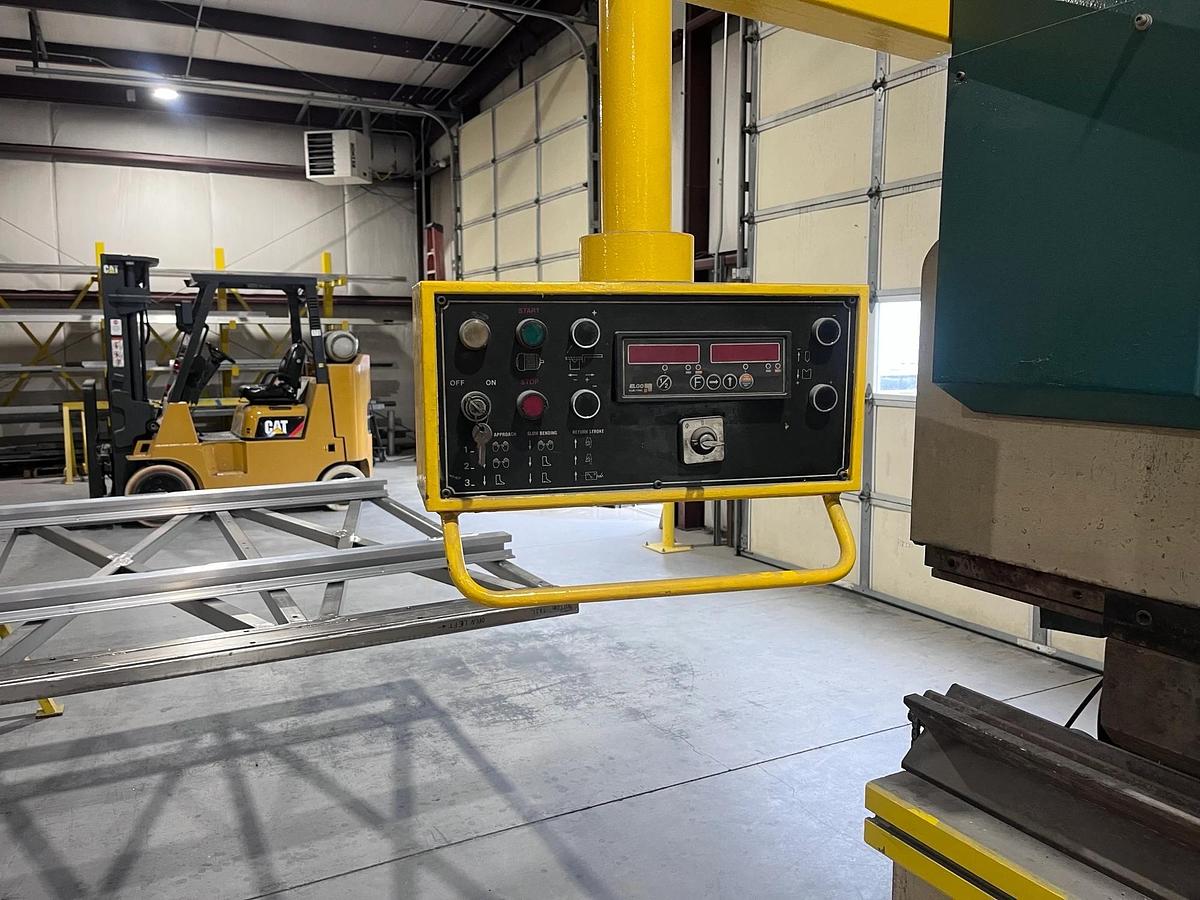

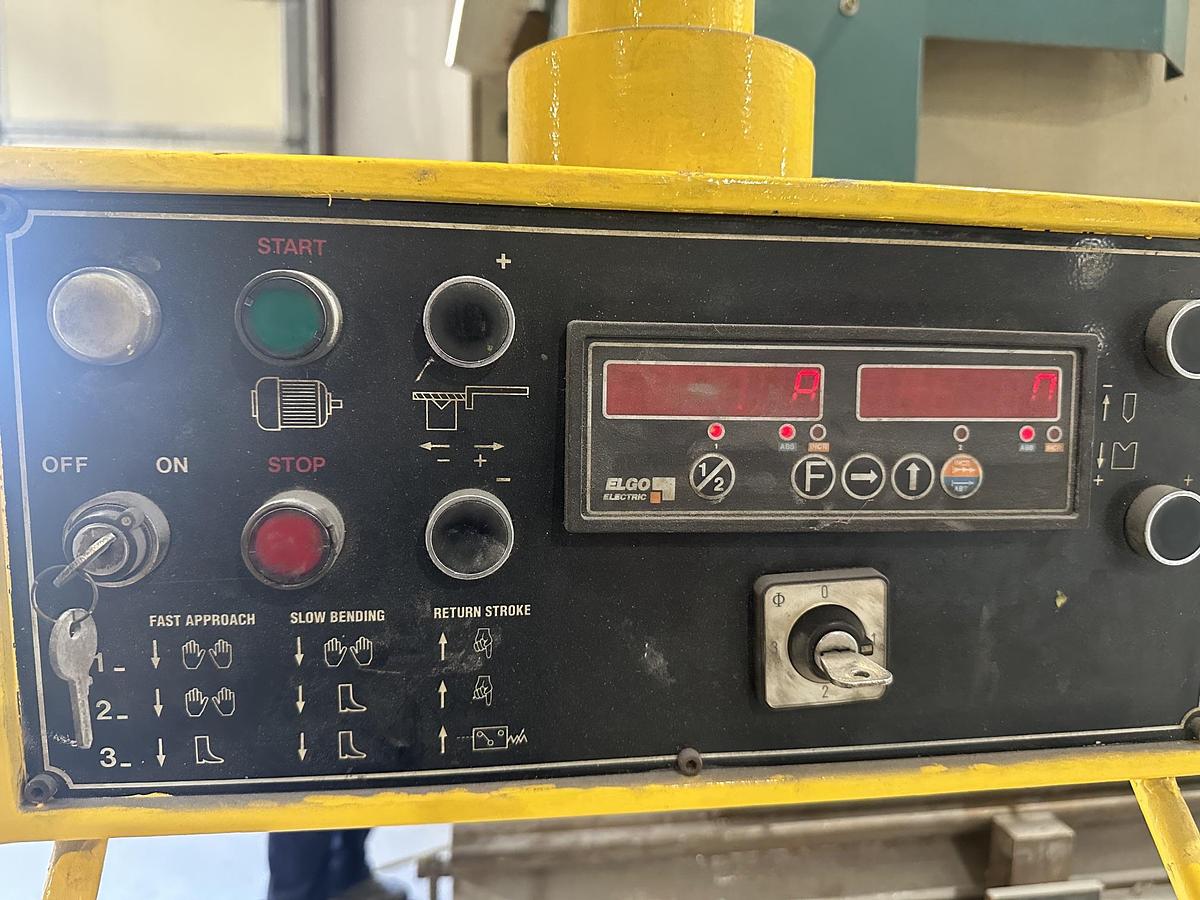

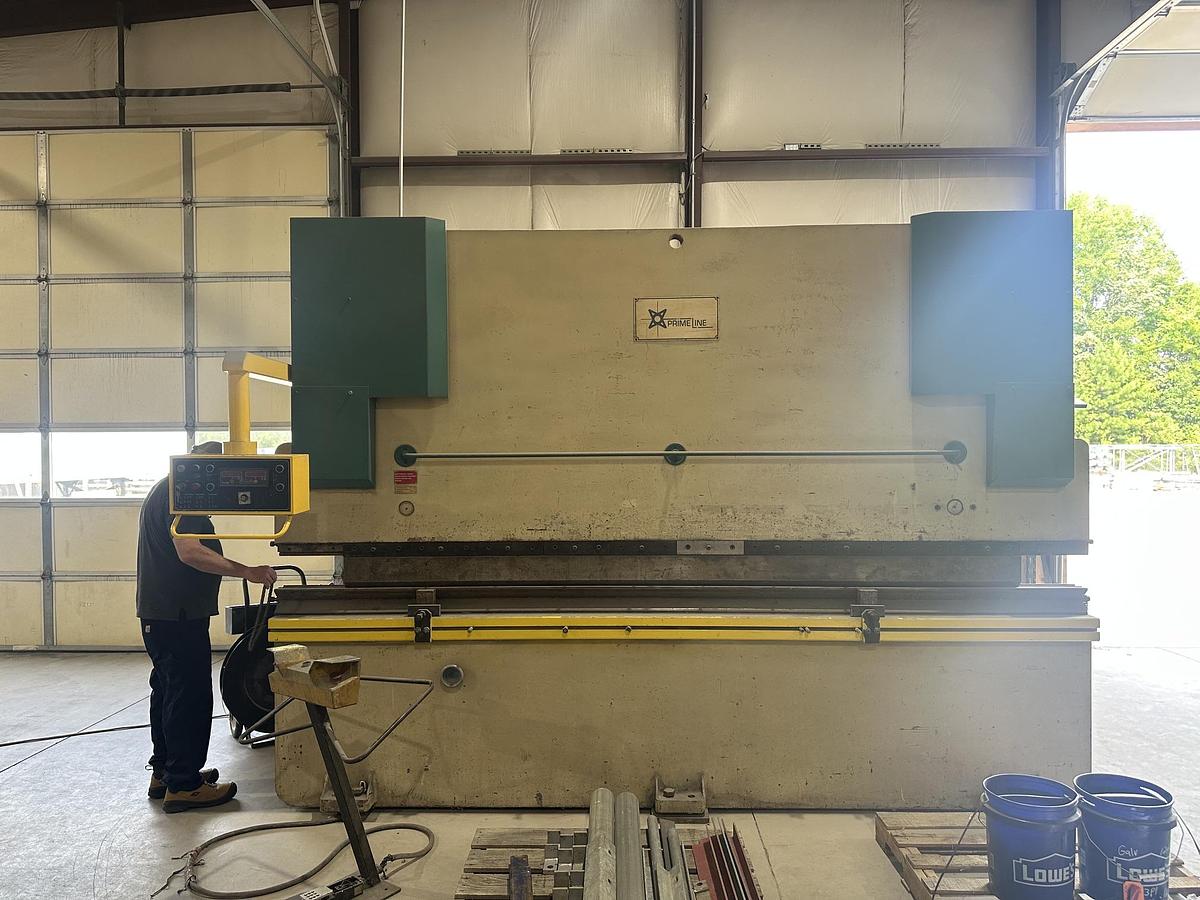

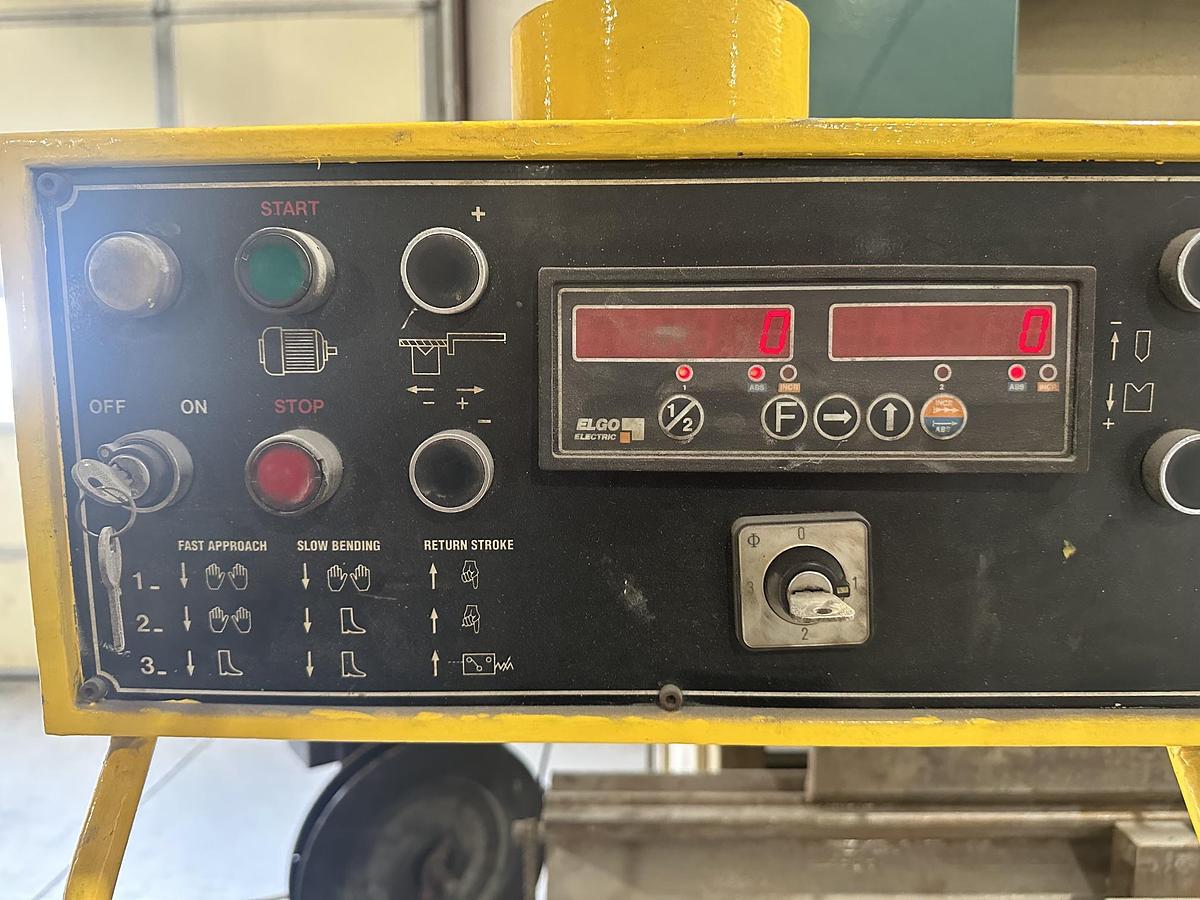

220 Ton X 12' Hydraulic Press Brake with Elgo 2- Axis Control

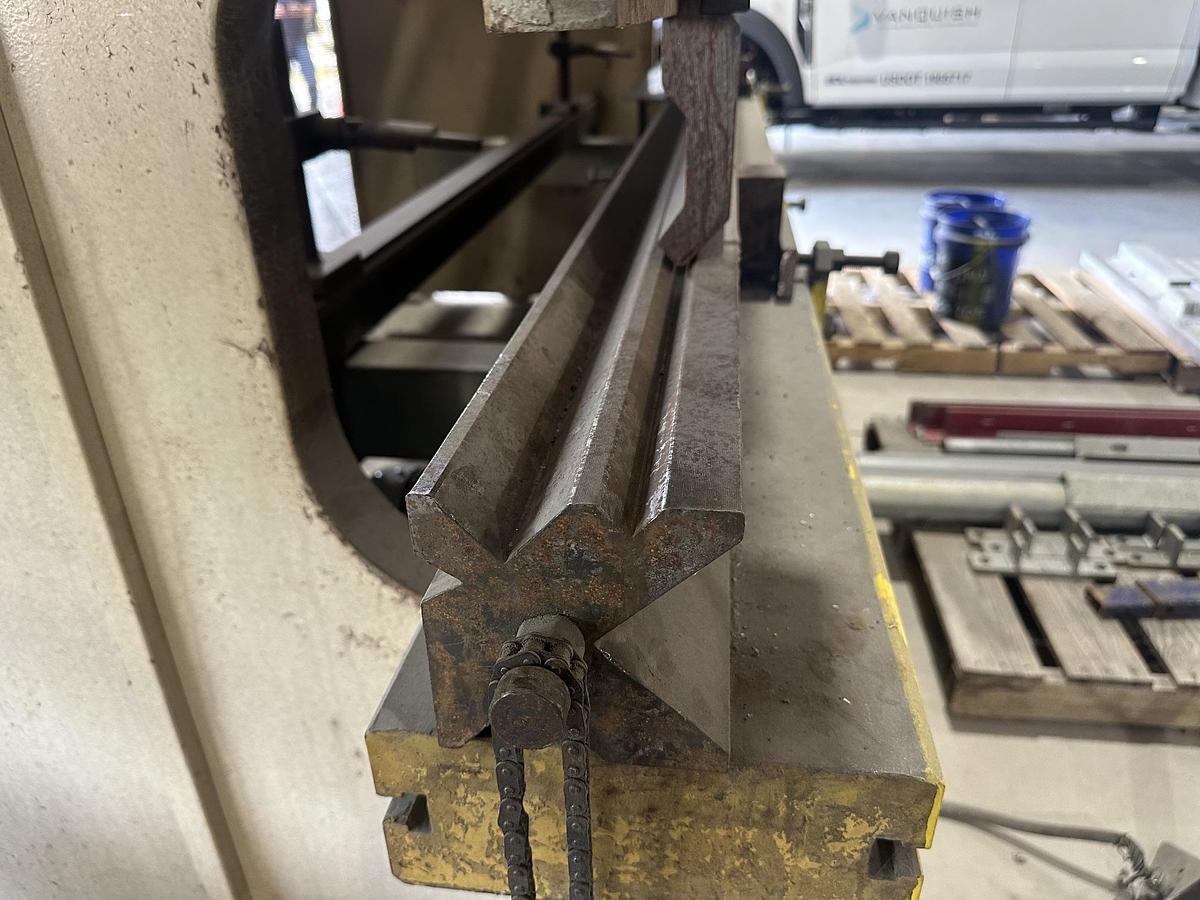

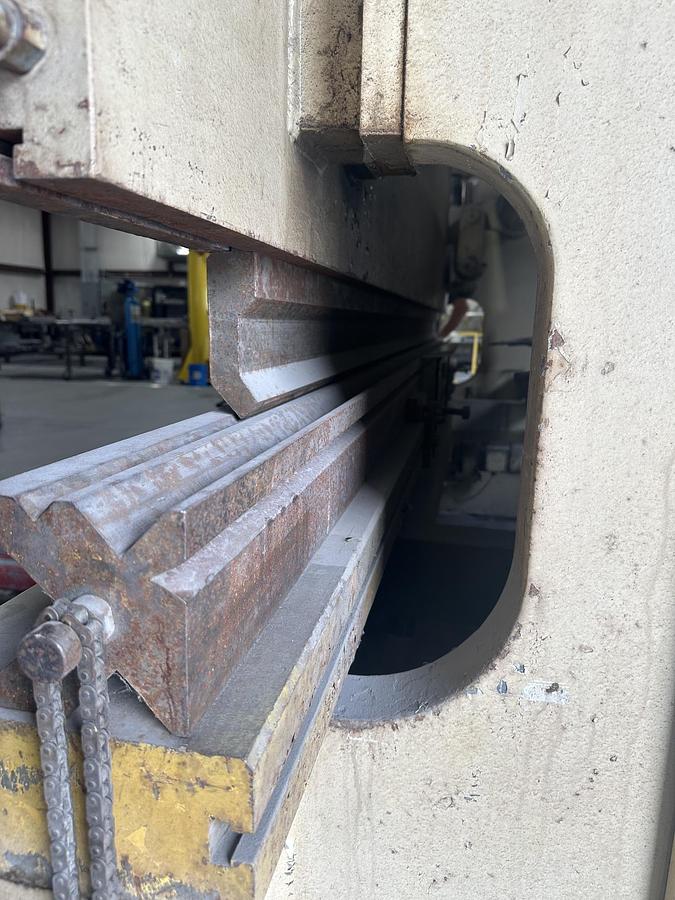

Lower Die Rail
Sectional Ram Clamps
Tonnage Control with Gauge

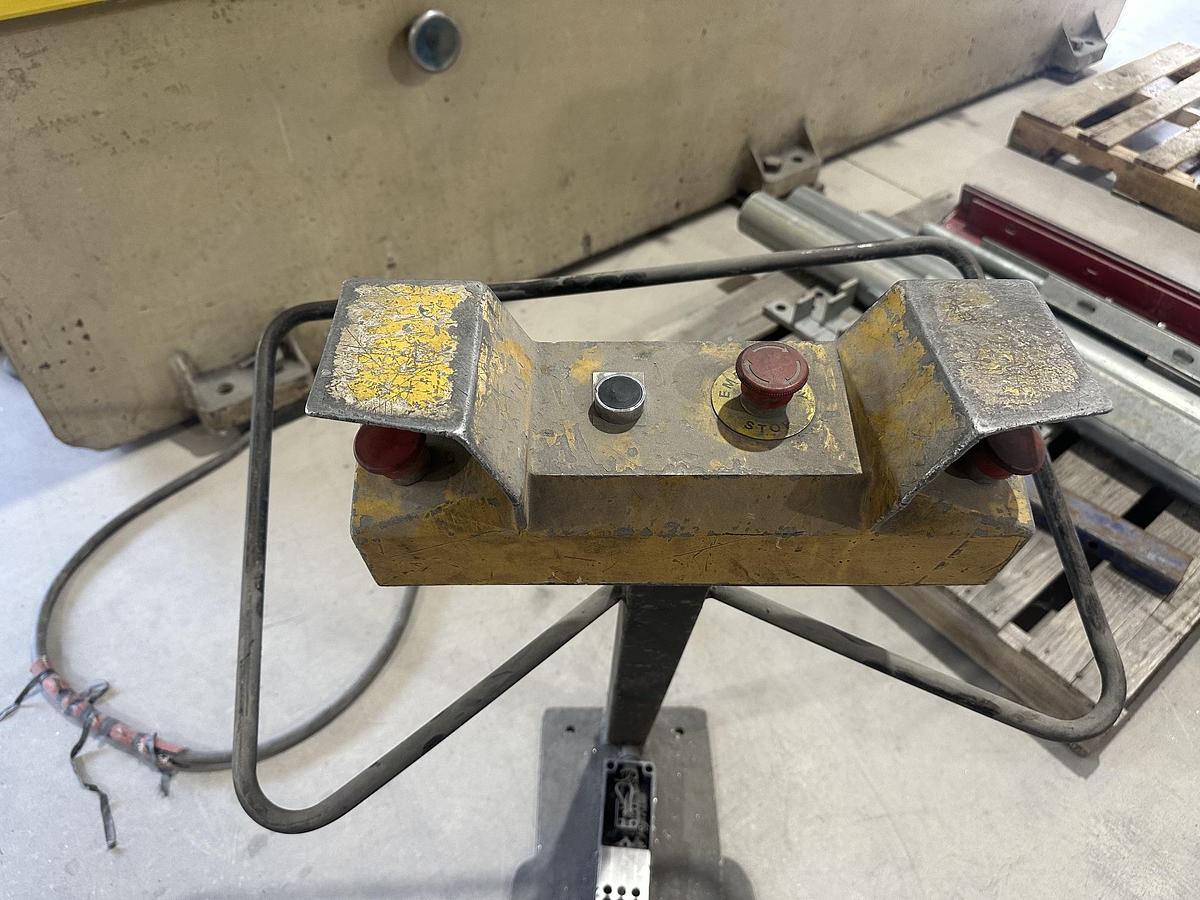

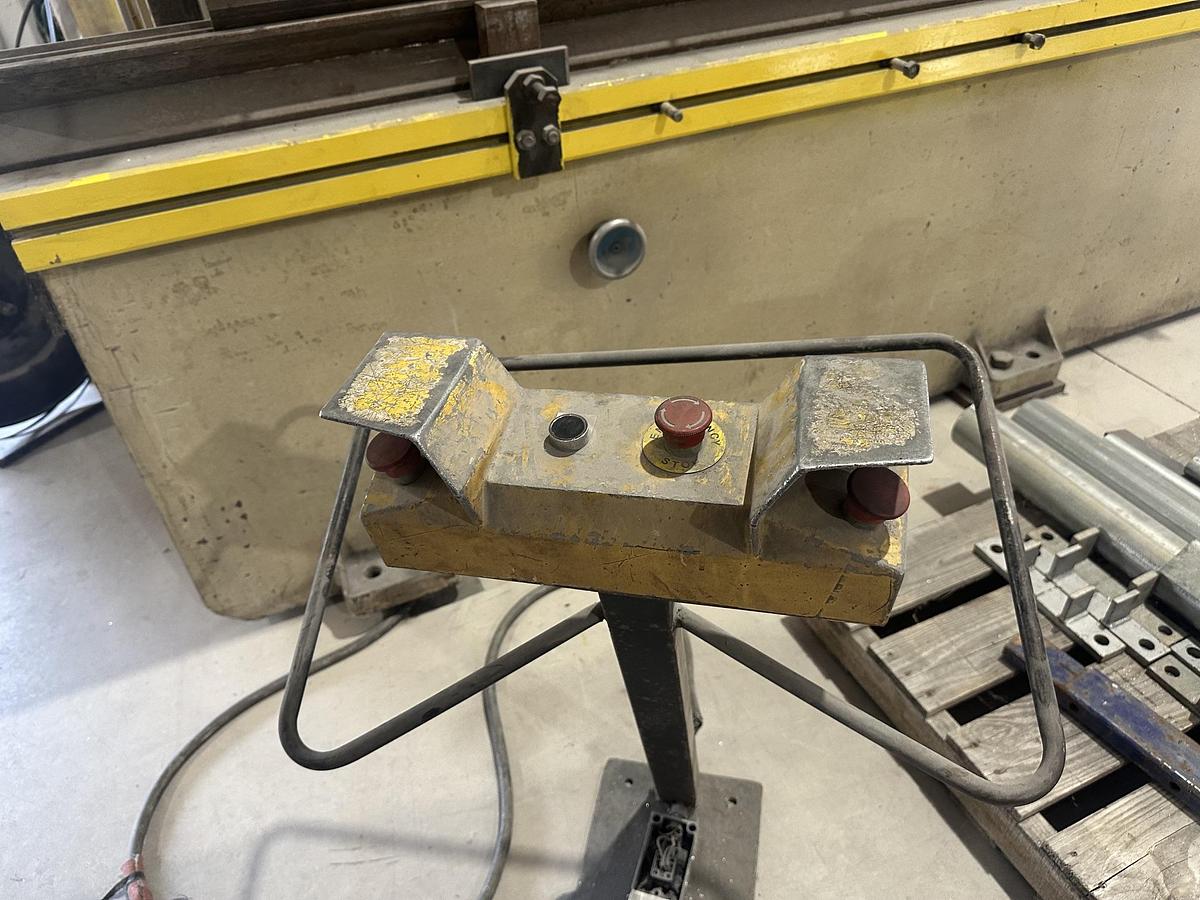

Dual Palm Buttons
Electric Foot Switch and Front Arm Supports

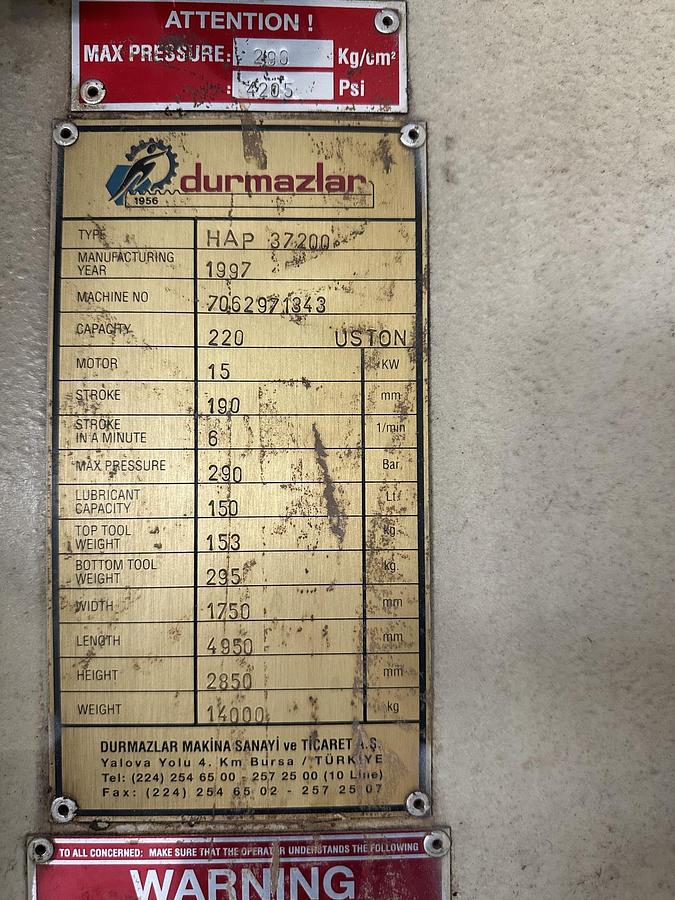

Specifications
| Model | HAP 37200 |
| Year | 1997 |
| Condition | Used |
| Capacity | 220 tons |
| Overall Length of Bed and Ram | 12' |
| Distance Between Housings | 10' 6" |
| Bending Capacity at 12' | 1/4" |
| Bending Capacity at 10' | 3/8" |
| Stroke | 7.48" |
| Open Height | 13" |
| Throat Depth | 16" |
| Approach Speed | 236" |
| Press Speed | 19 IPM |
| Retrn Speed | 192 IPM |

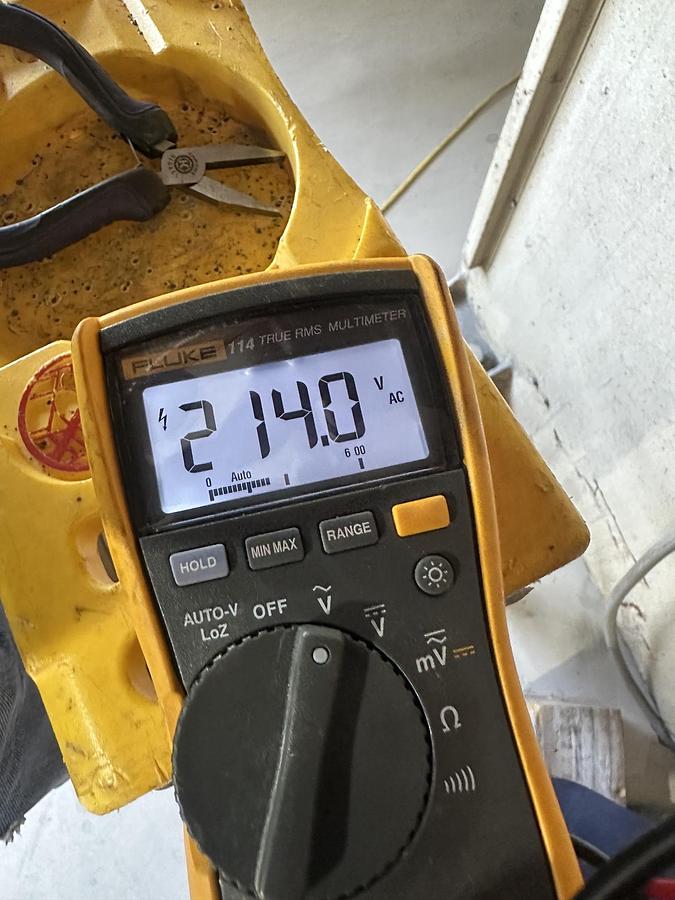

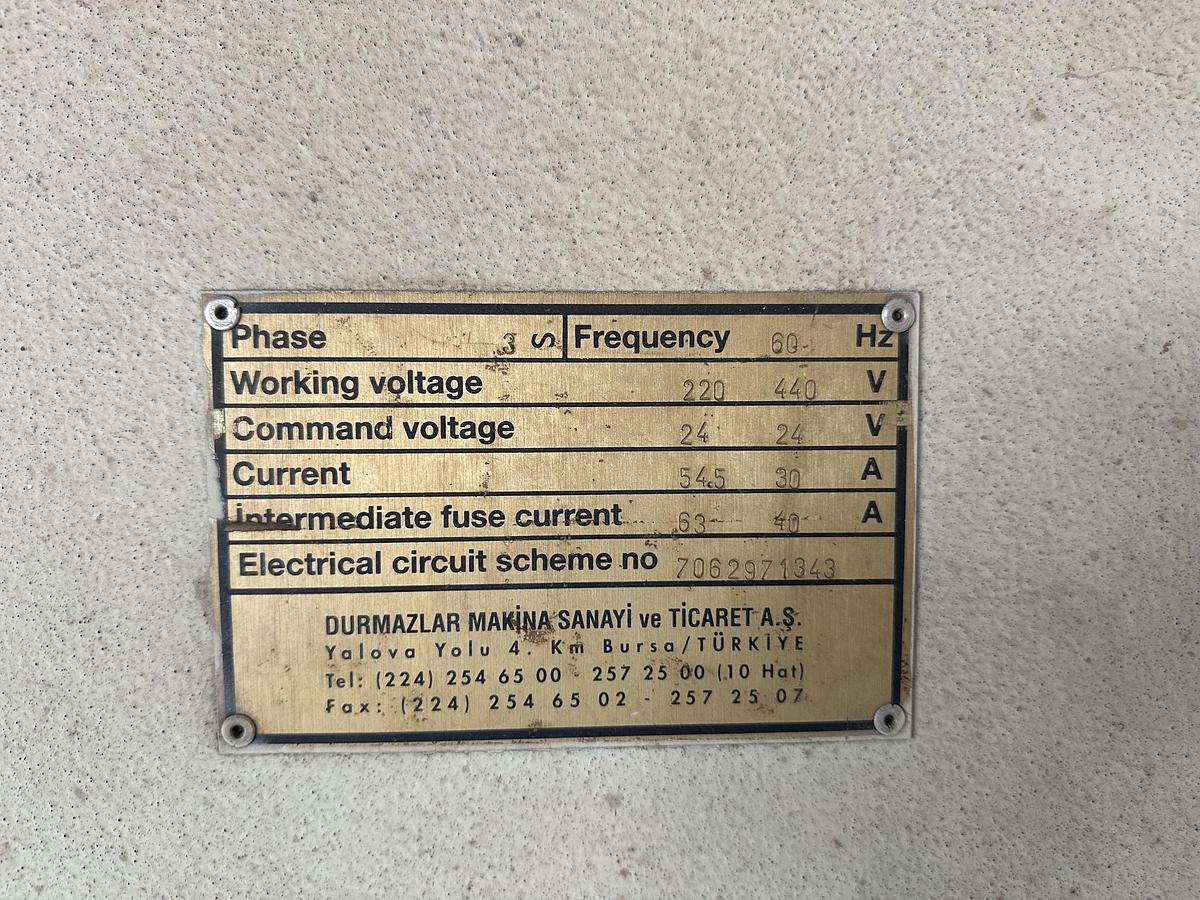

| Voltage | 230/460/3 Ph |
| Dimensions | 195" W x 70" L x 112" H |
| Weight | 30,000 lbs. |
| Motor Power | ~ 20 hp (= 15 kw) |
