2008 AD325L/LN1W Wire EDM
2008 AD325L/LN1W Wire EDM
Contact us for price
or
Call (828) 241-1701
Description

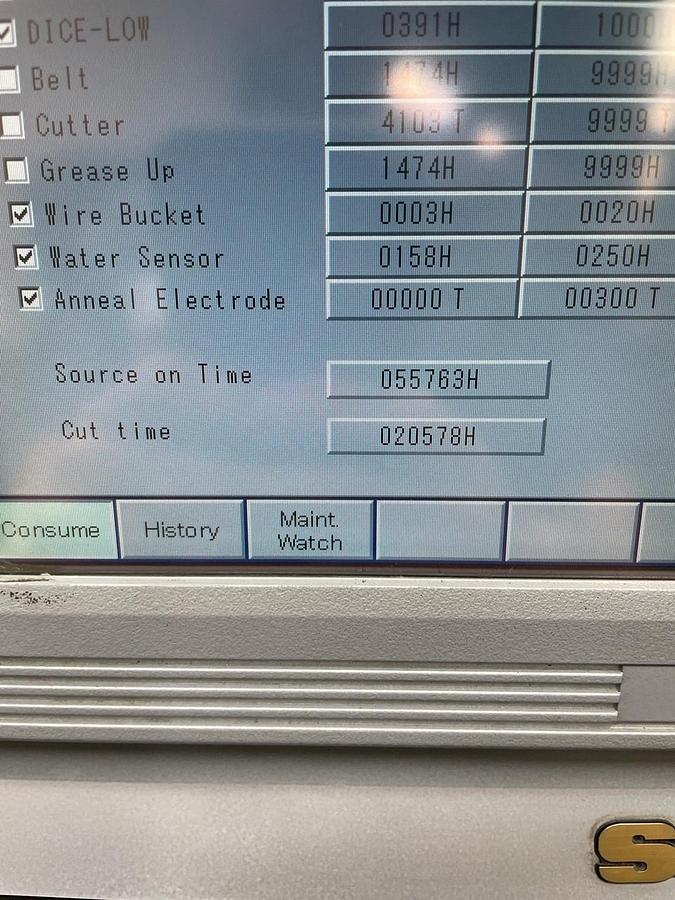

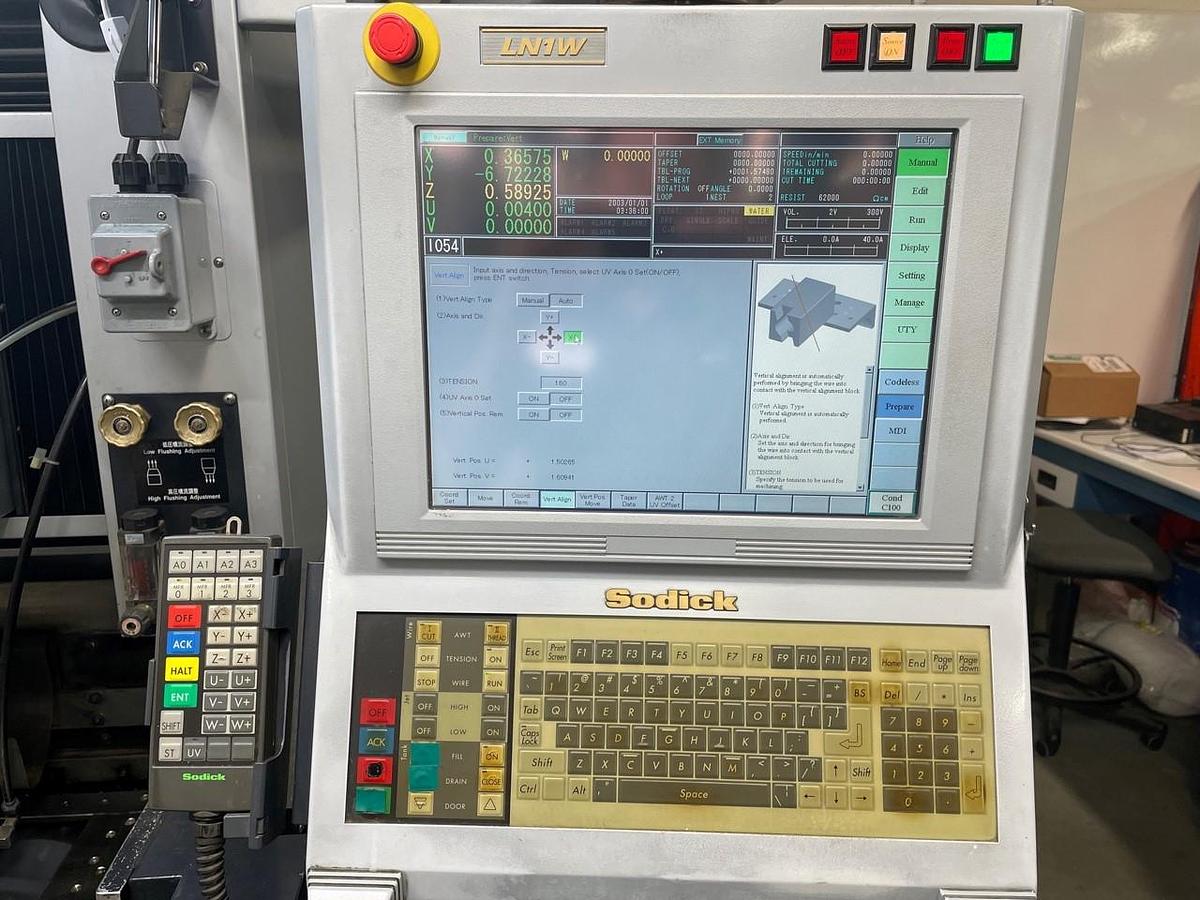

LN1W CNC Control, 40 AMP
4 Axis Linear Drive
New in 2008, Less than 1 shift use.
Digital PIKA Circuit Carbide Cutting Circuit
Compact Footprint

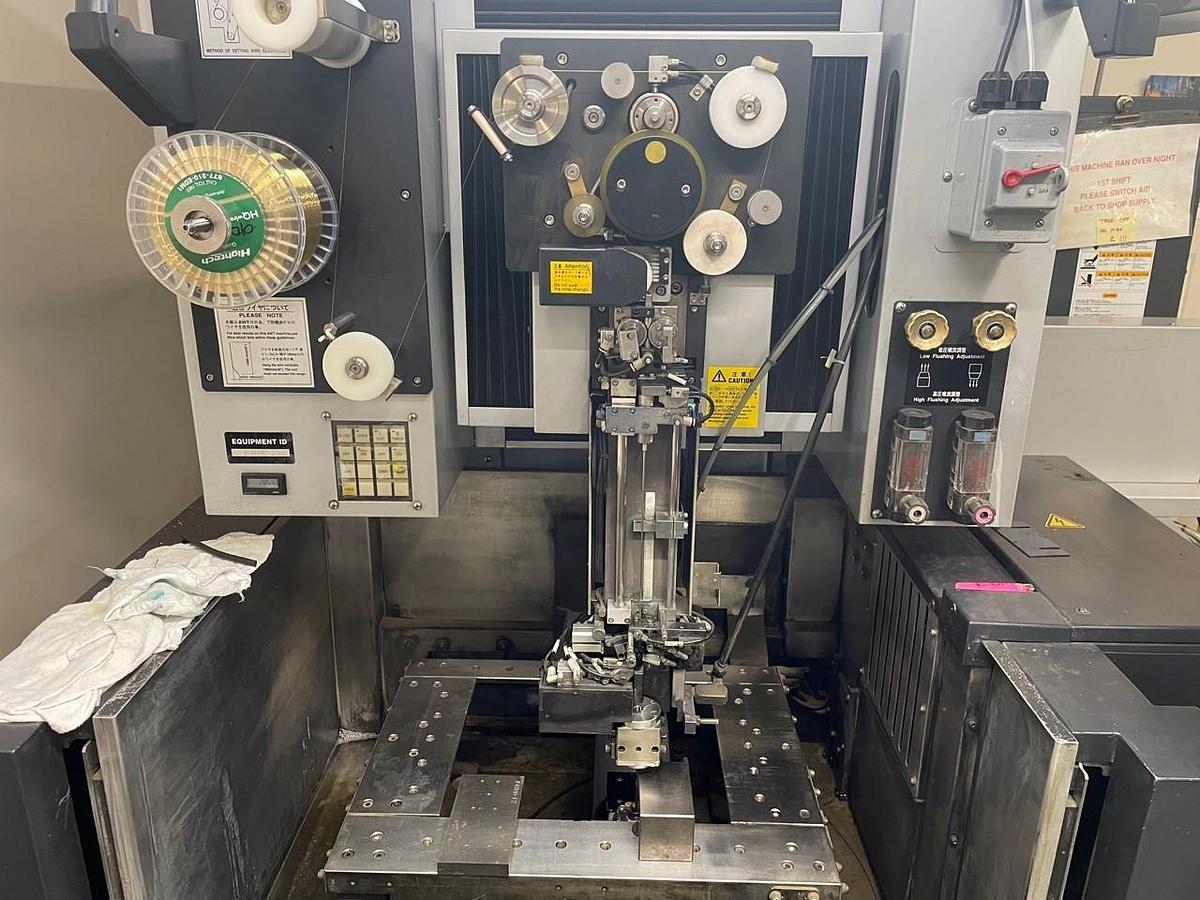

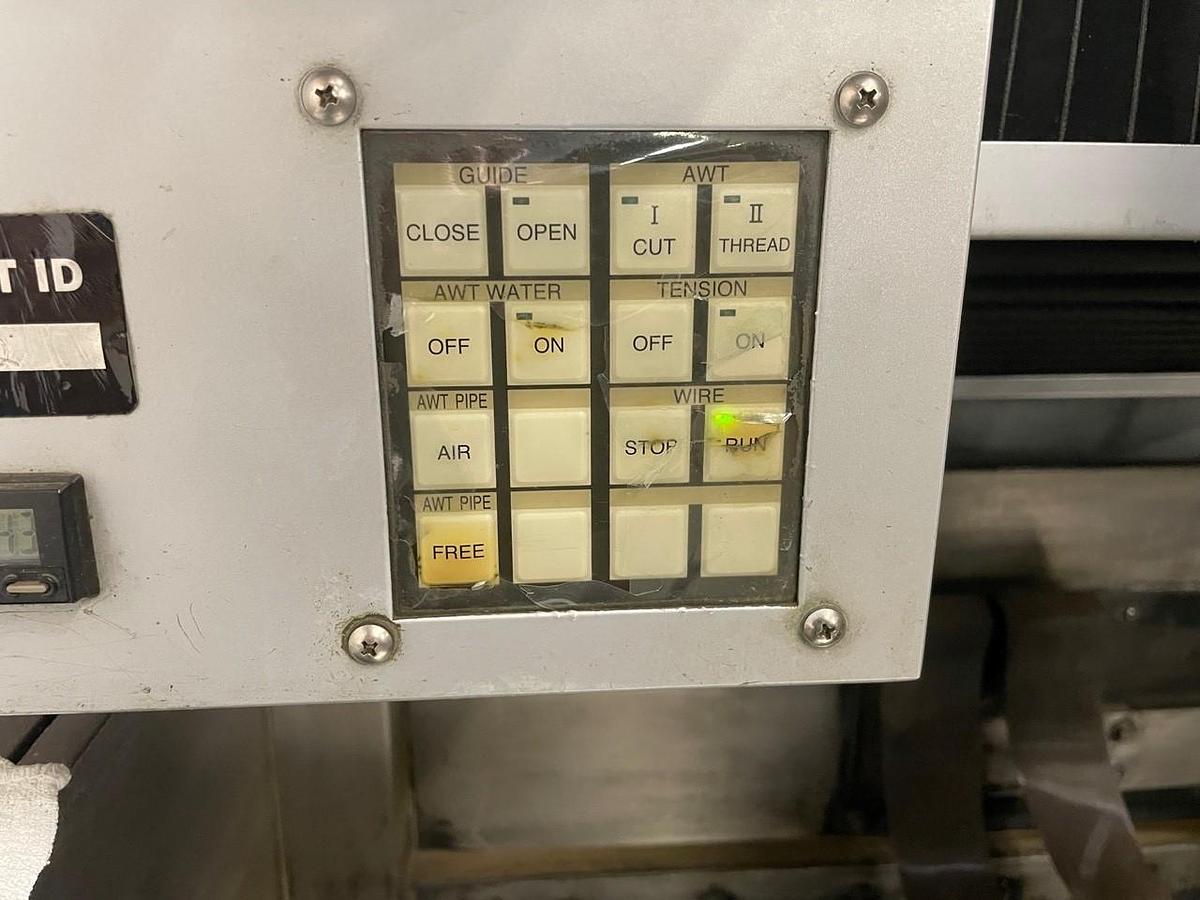

Super Jet AWT Type B Auto Wire Threader
Machinability of larger workpiece
Specifications
| Manufacturer | Sodick |
| Model | AD325L/LN1W |
| Year | 2008 |
| Condition | Used |
| X-Axis Travel | 13.77" |
| Y-Axis Travel | 9.84" |
| Z-Axis Travel | 8.66" |
| U/V Axis Travel | 3.15" x 3.15" |
| Max WP Dimensions | 30.7" x 22.4" x 8.46" |
| Max WP Weight | 1,102 lbs. |
| Wire Diameter | 0.0106" to 0.012" |
| Max Taper Angle | +/- 15 degrees (at 4.72"/120 mm thickness) |

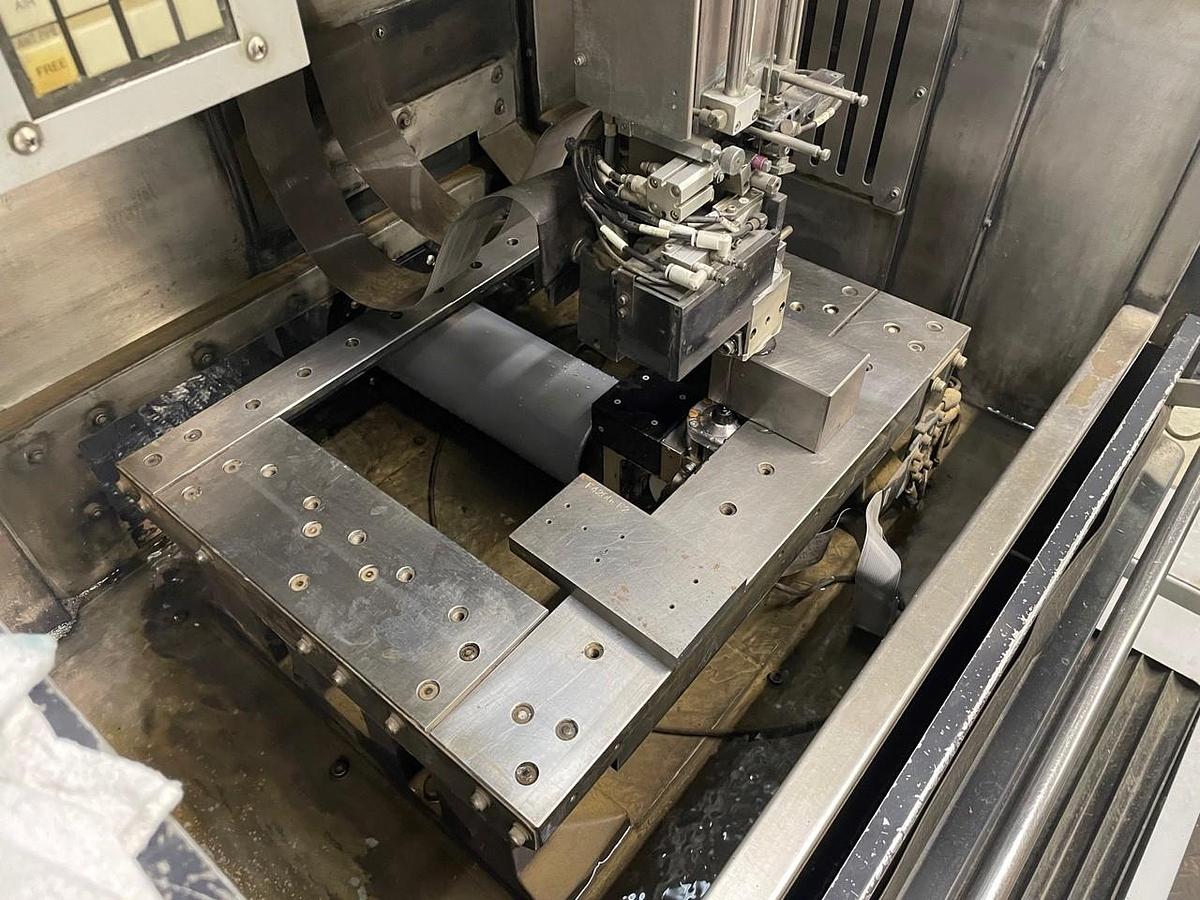

| Inside Tank Dimensions | 23.6" x 15.74" |
| Machine Tool Dimensions | 83" x 86" x 84" |
| Machine Tool Weight | 7,495 lbs. |
