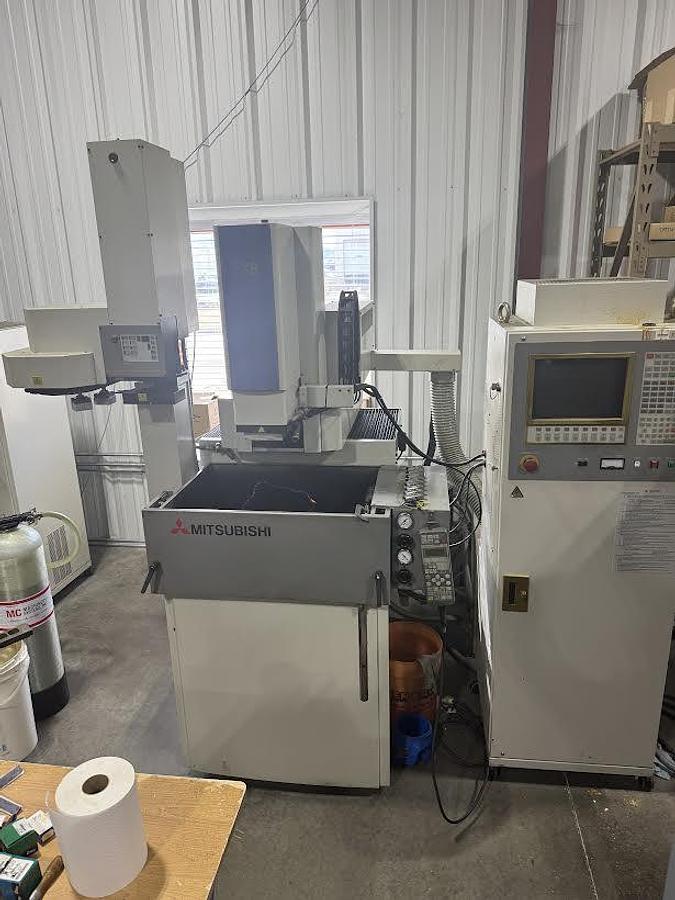

Mitsubishi EX8
Mitsubishi EX8
Contact us for price
or
Call (828) 241-1701
Description

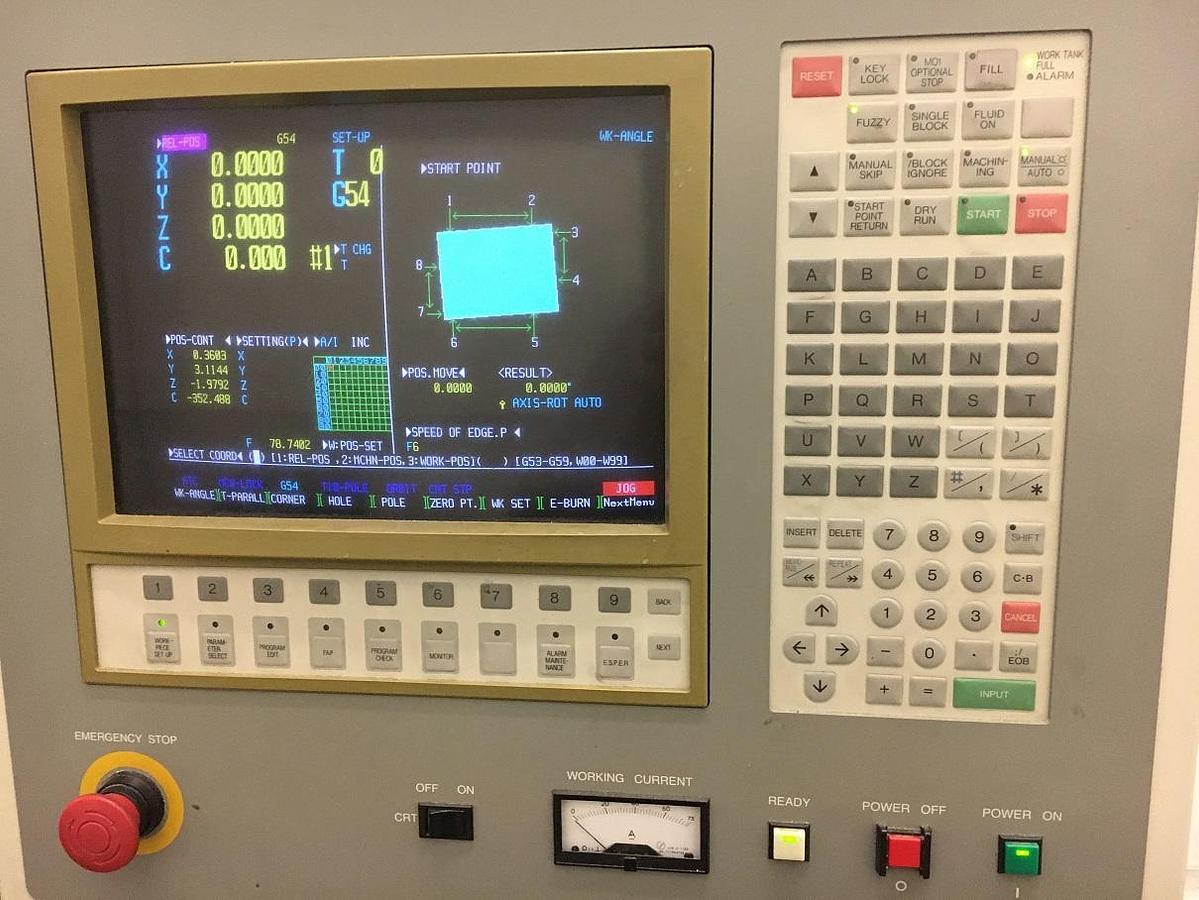

Mitsubishi 32-Bit Fuzzy Logic Control
C-Axis (System 3R Combi)

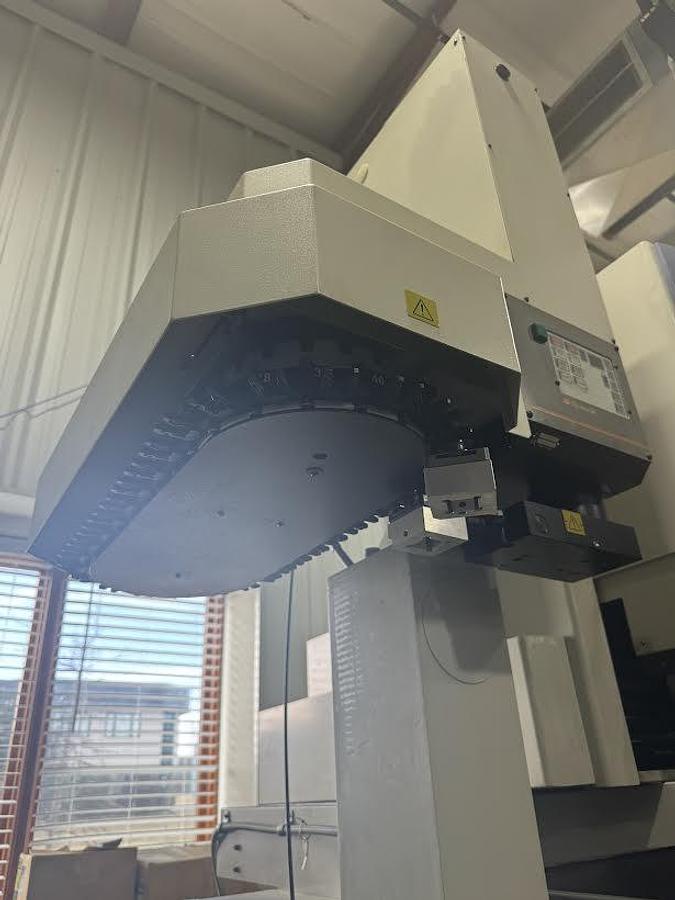

16 Position Automatic Electrode Changer
8 Position Programmable Flushing

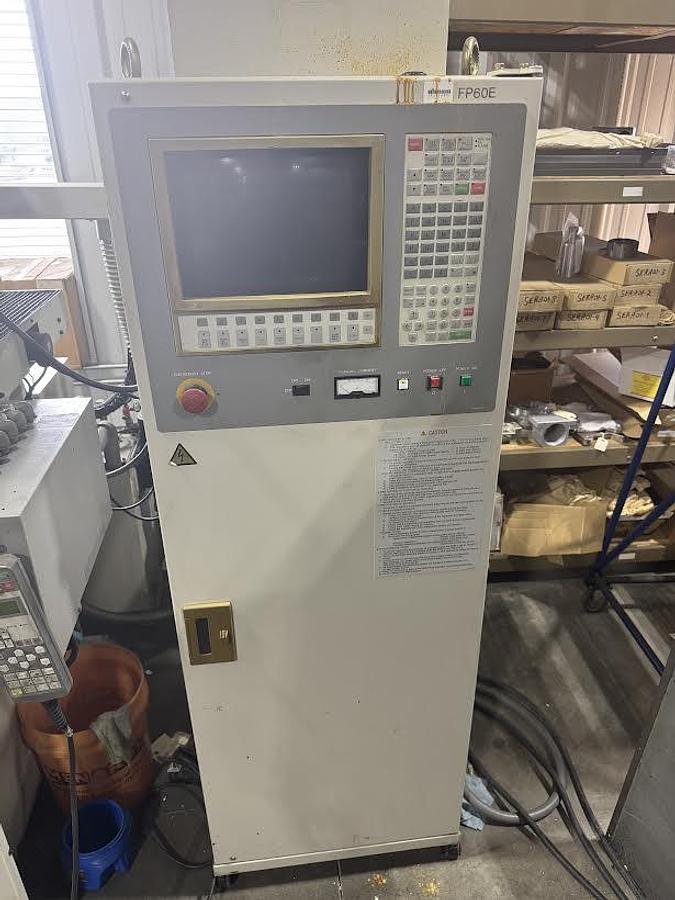

FP60E Power Supply
Dielectric Filtration System
Chiller
* Electrode holder and table fixture pictured are NOT included with the machine.
Specifications
| Manufacturer | Mitsubishi |
| Model | EX8 |
| Year | 1998 |
| Condition | Used |
| X-Axis Travel | 11.81" |
| Y-Axis Travel | 9.84" |
| Z-Axis Travel | 9.84 |
| Table Size | 21.65" x 13.77" |
| Worktank Size | 24.08" x 16.53" x 15.9" |
| Max Workpiece Size | 35.43" x 23.62" x 11.81" |
| Max Workpiece Weight | 1,200 lbs. |
| Max Current | 60 Avg Amps/80 Peak Amps |
| Electrode Positions (Macro.Macro Jr) | 16 |
| Max Electrode Weight | 55 lbs. |
| Dielectric Oil Capacity | 37 gal |
| Electrical Requirements | 220-220V/3 Phz/60Hz |
| Machine Dimensions | 90" x 88" x 80" |
| Machine Weight | 2,640 lbs. |
