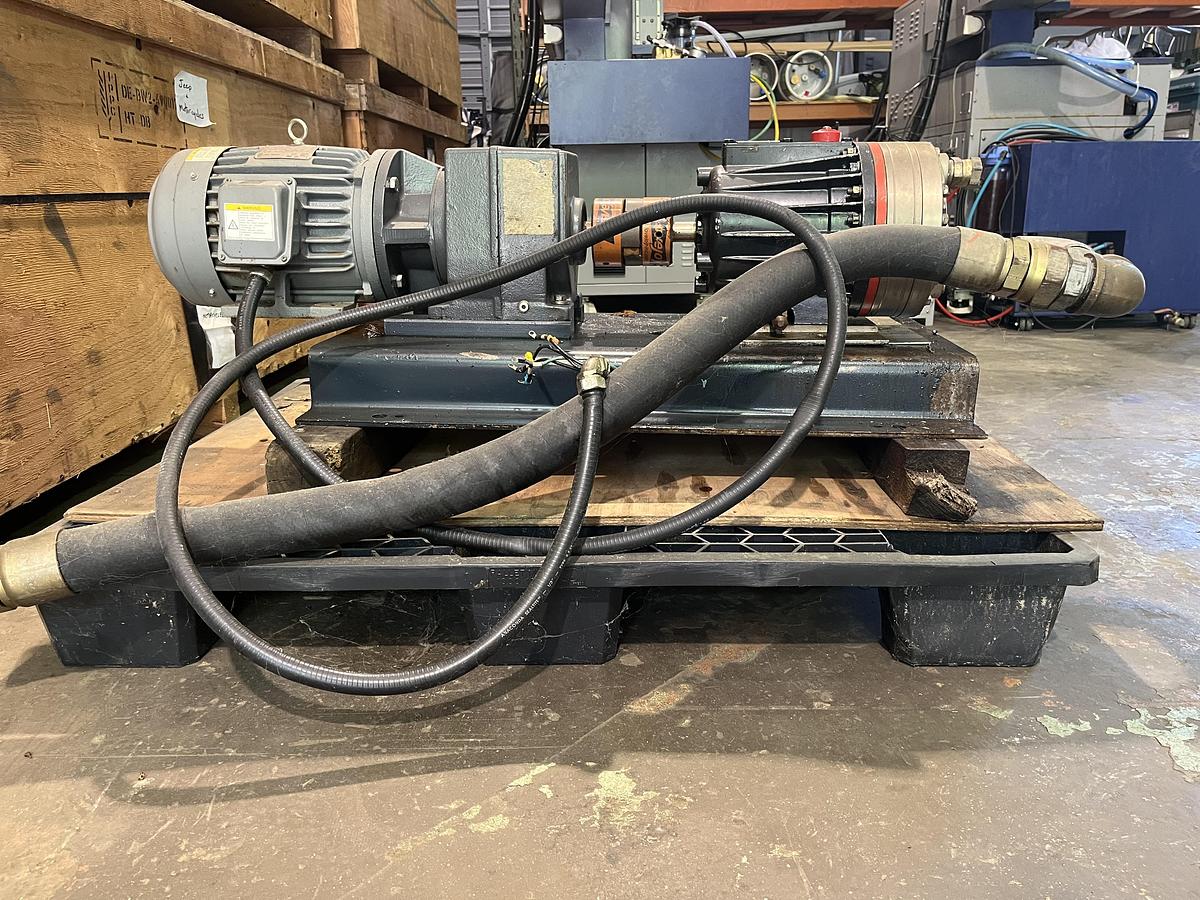

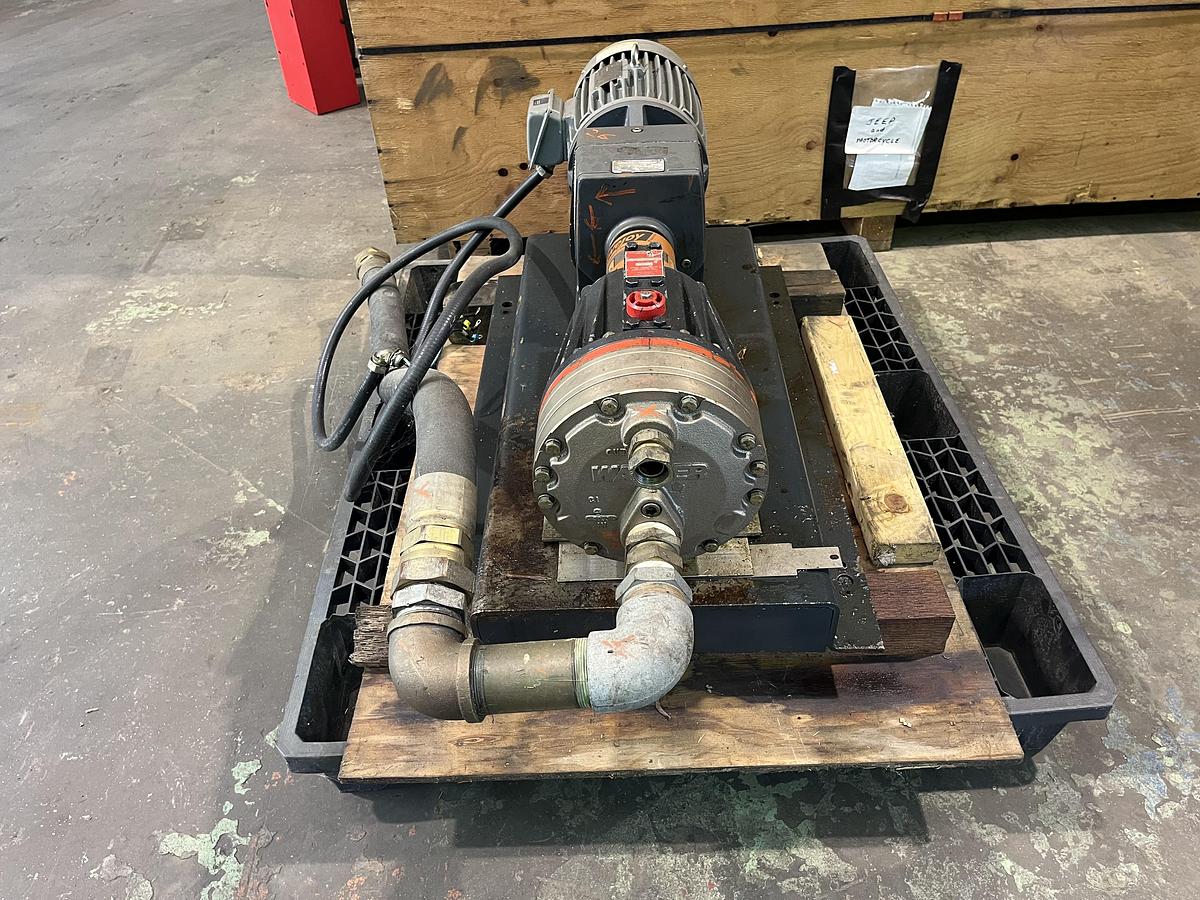

Hydra-Cell H25 EFCGHFECA High Pressure Pump
Hydra-Cell H25 EFCGHFECA High Pressure Pump
Contact us for price
or
Call (828) 241-1701
Description
Pump Configuration: H25 (Shaft-driven with NPT Ports or ANSI Flanges)
Hydraulic End Cam: E (20.0 gpm maximum flow rate at 1150 rpm)
Hydra-Oil: A (10W30 standard-duty oil)

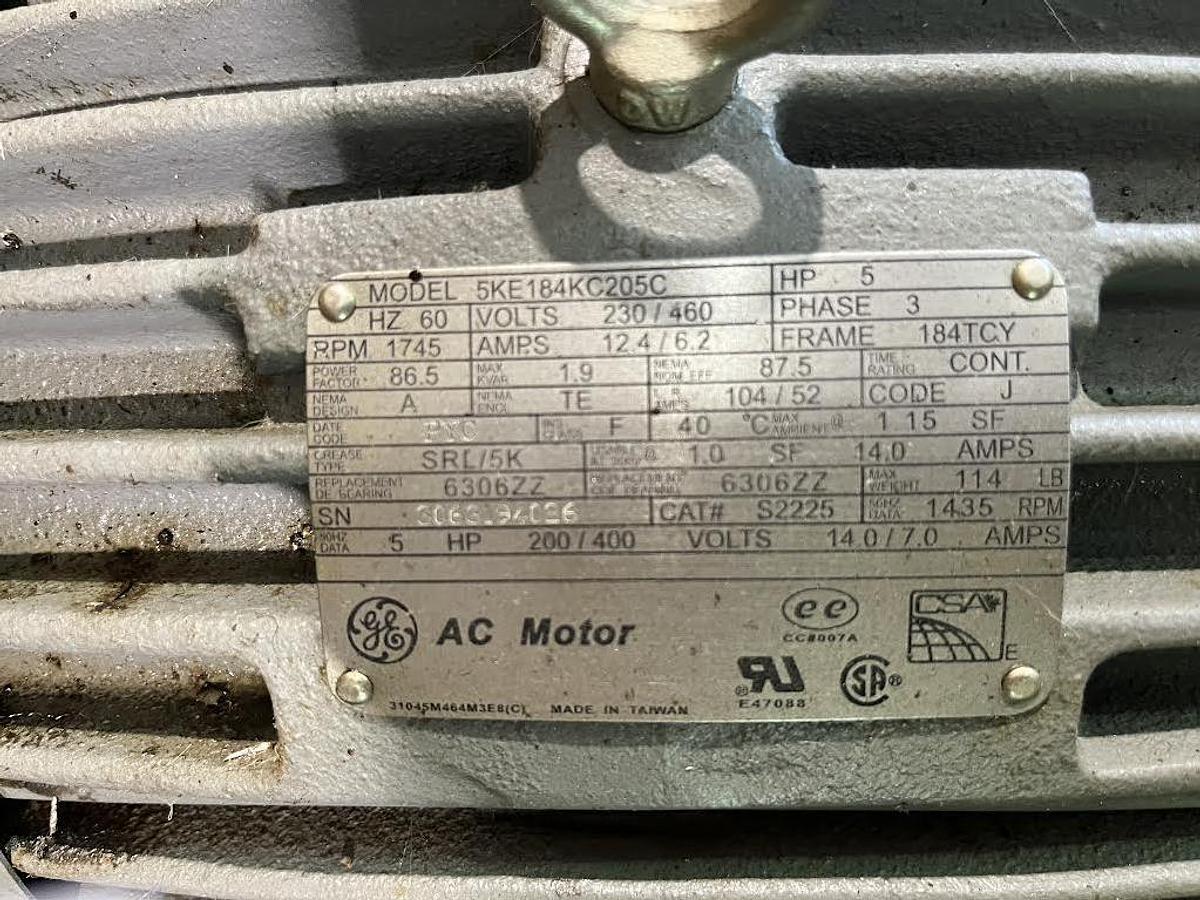

5HP GE AC Motor #5KE184KC205C

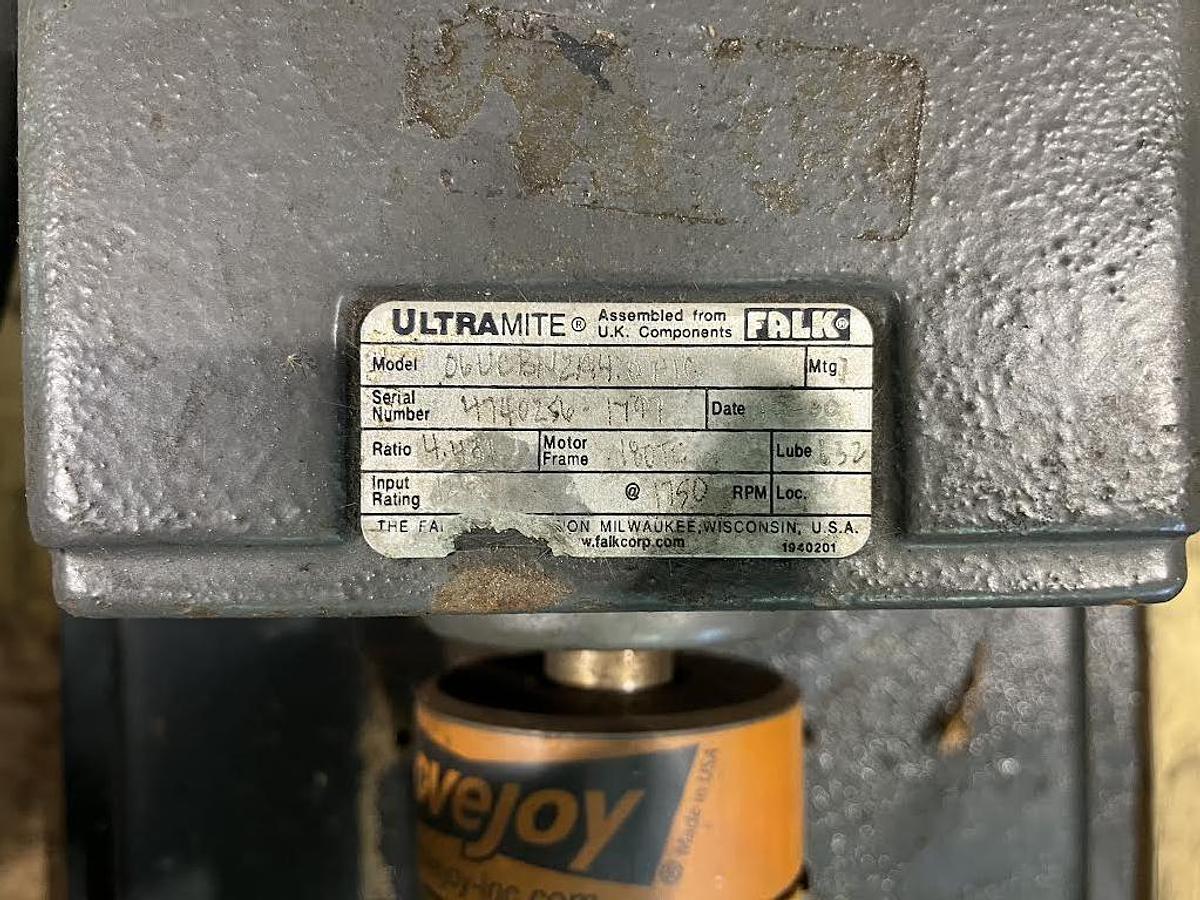

UltraMite Gear Drive
High Pressure, High Flow Applications
Specifications
| Manufacturer | Wanner Engineering |

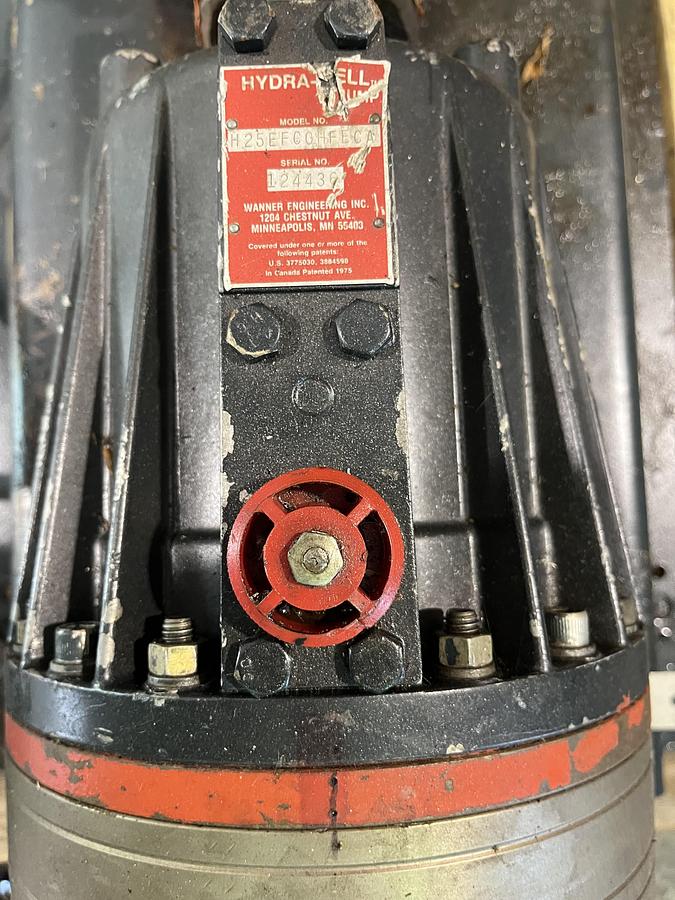

| Model | H25 EFCGHFECA |
| Condition | Used |
| Max Flow Rate | 20.0 gpm (75.9 I/min) |
| Max Pressure Metallic Pump Heads | 1,000 psi (69 bar) |
| Max Pressure Non-Metallic Pump Heads | 350 psi (24 bar) |
| Max Solids Size | 800 microns |
| Inlet Port | 1-1/2" NPT or 150 lb ANSI RF flange |
| Discharge Port | 1" NPT or 150 lb ANSI RF flange |
| Shaft Diameter | 1-1/3" (28.6mm) |
| Shaft Rotation | Reverse (bi-directional) |
| Bearings | Tapered Roller Bearings |
| Oill Capacity | 3.3 US Quarts (3.1 liters) |
| Weight Metallic Heads | 125 lbs (56.8 kg) |
| Weight Non-Metallic Heads | 90 lbs (40.9kg) |
