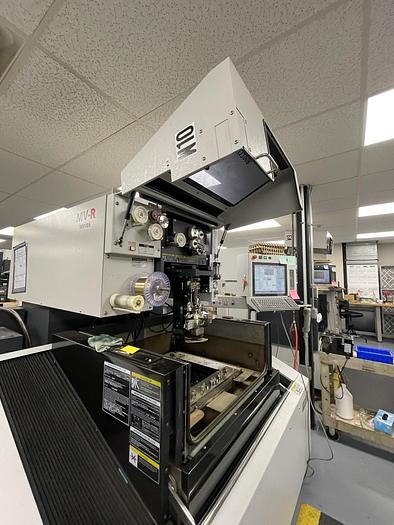

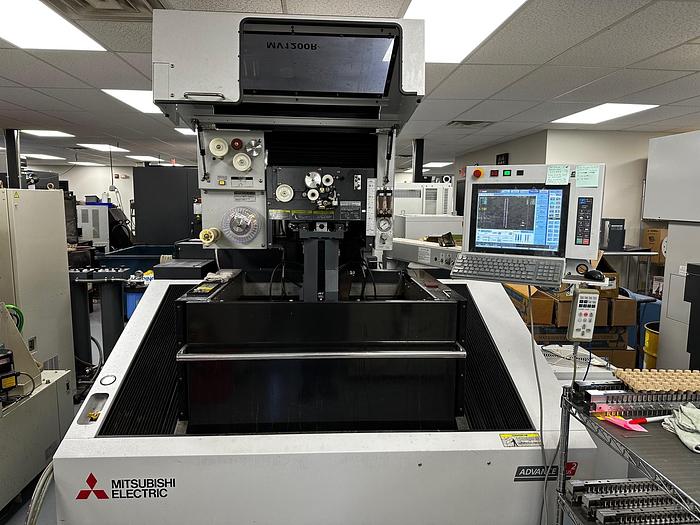

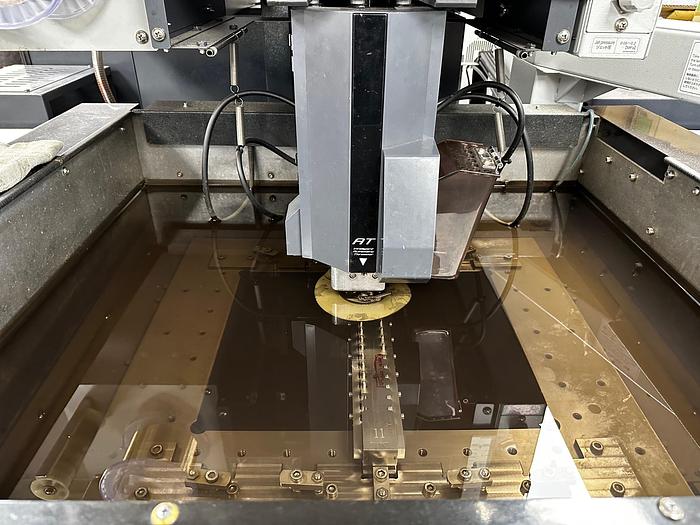

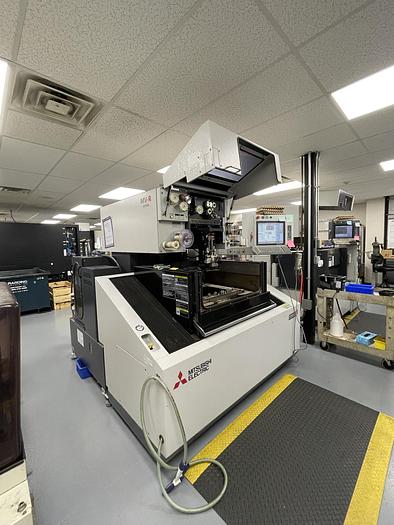

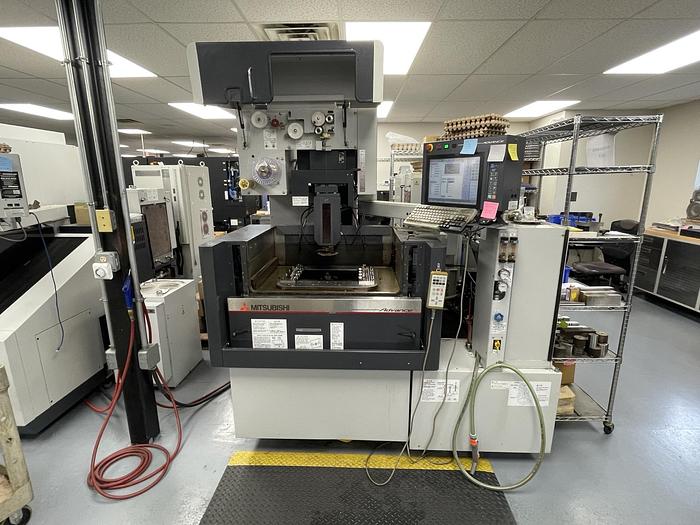

2016 Mitsubishi MV1200R
Description

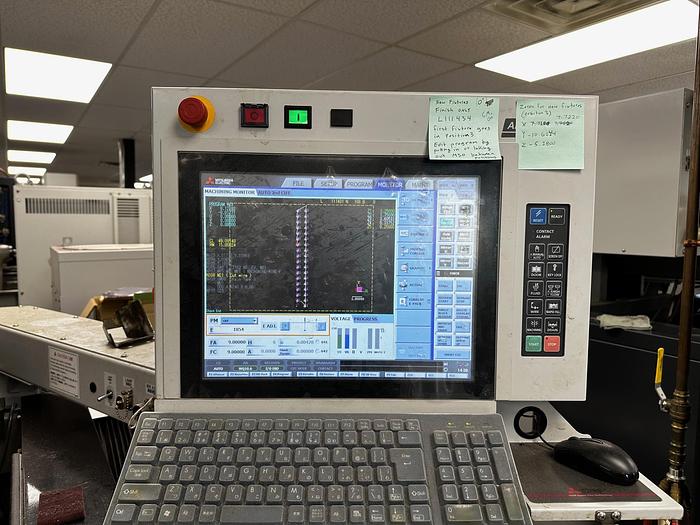

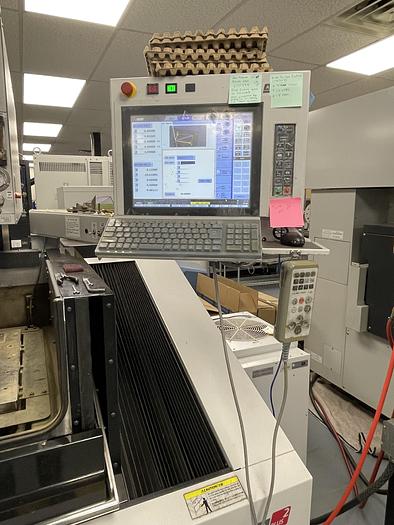

Control M700 Series
Chiller
Auto Wire Threading
Linear Ways X,Y,U,V
Specifications
| Manufacturer | Mitsubishi |
| Model | MV1200R |
| Year | 2016 |
| Condition | Used |
| X-Axis Travel | 15.7" |
| Y-Axis Travel | 11.8" |
| Z-Axis Travel | 8.7" |
| U/V Axis Travel | 2.4" x 2.4" |
| Degree Tapering Cut | +/- 30 degrees @ 8" |
| Inside Tank Dimensions | 31.9" x 27.6" |
| Power Requirement | 200-230V |
| Table Size | 25.2" x 21.3" |
| Max Workpiece Dimensions | 31.9" x 27.6" x 8.5" |
| Max Workpiece Weight | 1,102 lbs. |
| Wire Diameter | .004" - .012" |
| Minimum Hole Diameter for Autothread | .020" |
| Max Wire Spool Size | 22 lbs. |
| Filter Tank Capacity | 145 gallons |
| Air Pressure Requirements | 71-100 PSA 2.7 cu ft/min |
| Machine Dimensions | 80" x 107" x 80" |
| Machine Weight | 5,952 lbs. |
