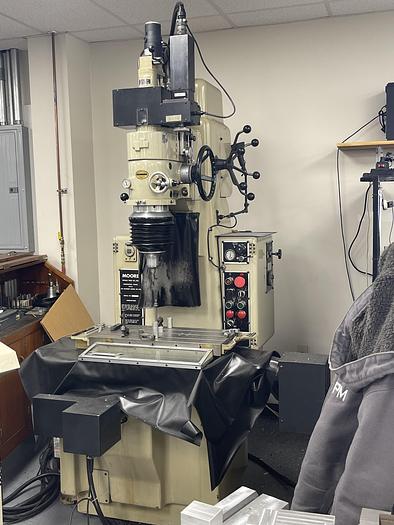

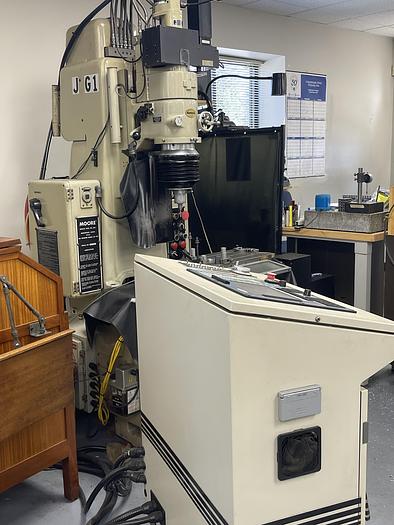

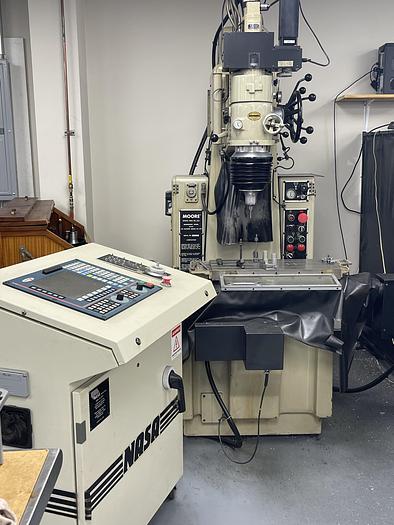

Moore G18 Jig Grinder with NASA Controls
Description

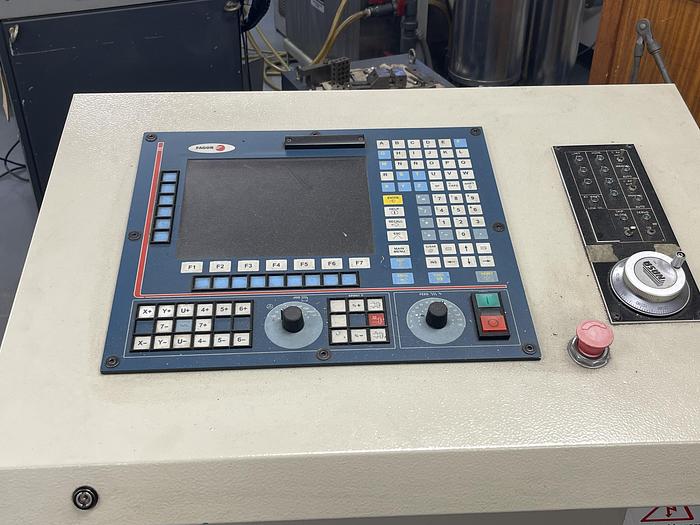

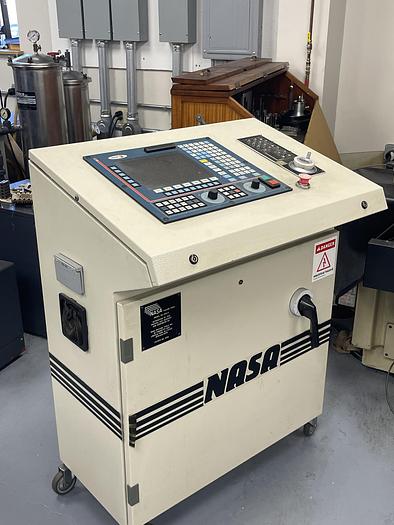

NASA Controls, 10.4" Color CRT
4-Axis Contourinn Capability XYCU Axis
3 Grinding Attachments
Specifications
| Manufacturer | Moore |
| Model | G18 |
| Condition | Used |
| Table Size | 11" x 24" |
| Table Travels | 18" Longitudinal x 11" Cross |
| Table to Wheel Collet | 2" - 18" |
| Spindle Column Ways | 10" |
| Spindle to Column below Ways | 13.5" |
| Spindle Speeds | 40-250 RPM |
| Infinite Spindle Feeds | from 4-240 SPM Travel 3-5/8" |
| Moore Spindle | 40,000 RPM |
| Machine Dimensions | 90" x 85" x 102" |
| Machine Weight | 4,800 lbs. |
