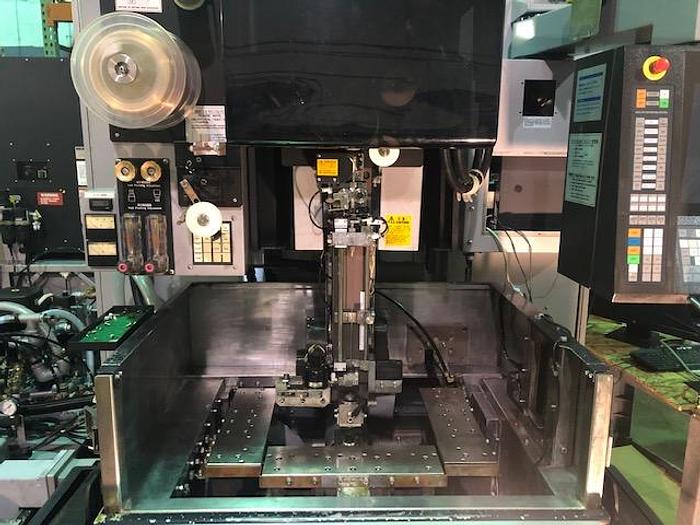

2004 Sodick AQ325L/LQ1W Wire EDM

No longer available

2004 Sodick AQ325L/LQ1W Wire EDM

Description

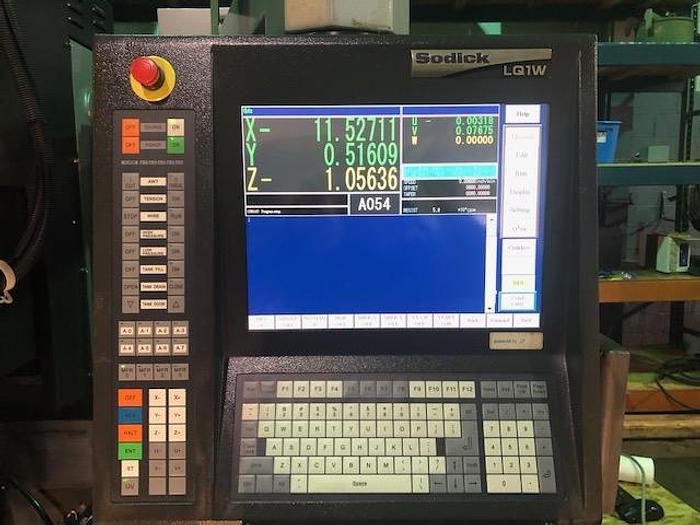

* LQ1W CNC Control, Linear Motors (X,Y,U,V)

* Power Supply,

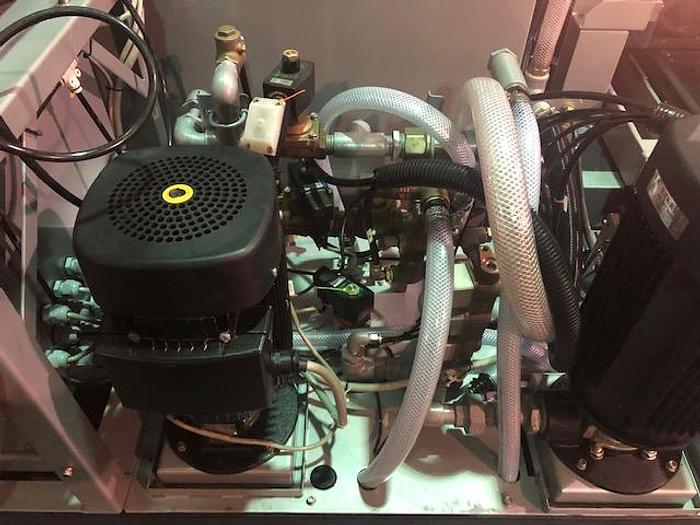

* Complete Dielectric Filtration System

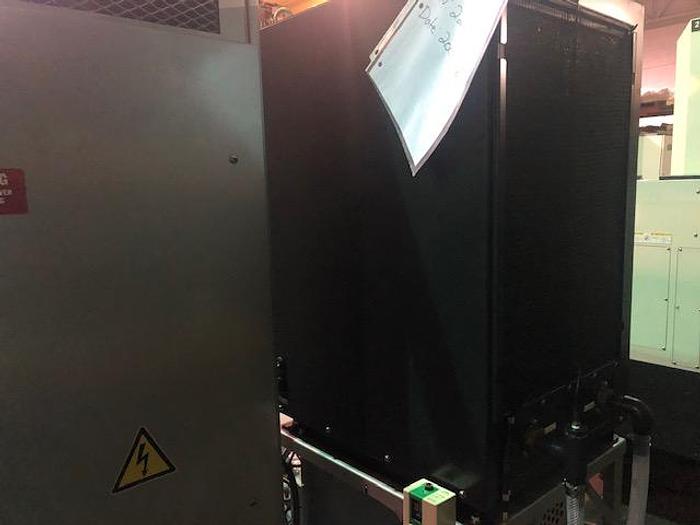

* Automatic Temperature Control Unit (Chiller)

* Submersible Flushing

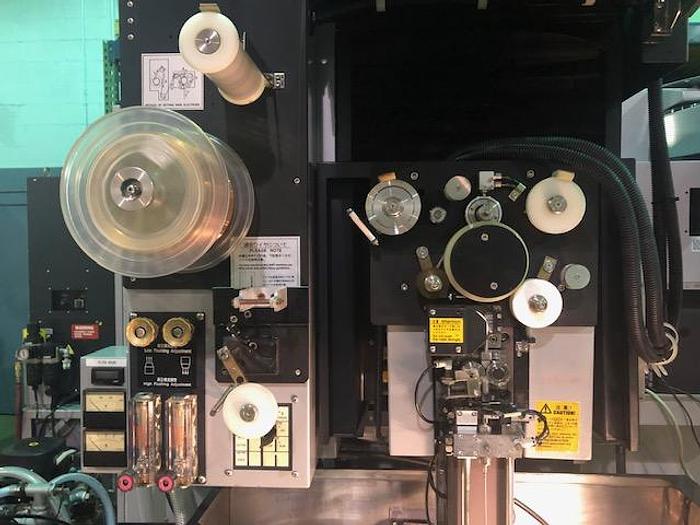

* Automatic Wire Threading



* X, Y & Z Axes Travel. . . . . . . . . . . . . . . 13.7” x 9.8” x 8.6”

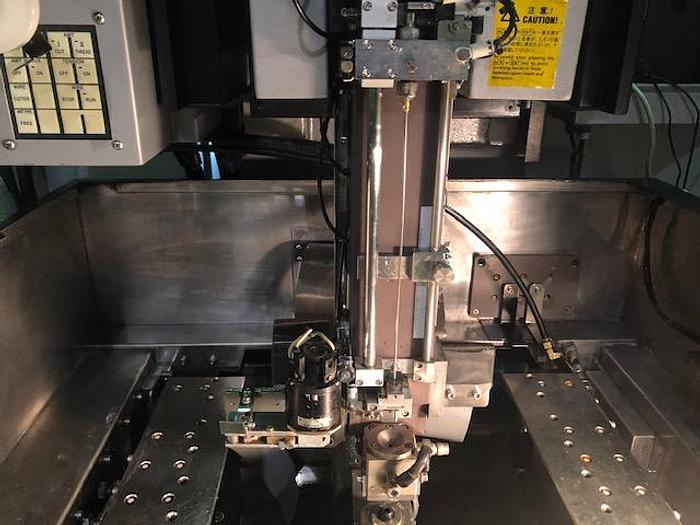

* Work Tank Inside Dimensions . . . . . . . . . . . . . . 35.2” x 25.5”

* Maximum Workpiece Weight. . . . . . . . . . . . . . . . . .990 Lbs.

* Maximum Taper . . . . . . . . . . . . . . . . . . . . . . ±20° @ 3.1”

Specifications

ManufacturerSodick
ModelAQ325L/LQ1W Wire EDM
Year2004
ConditionUsed
Weight6,000.00 LBS
X, y & z axes travel13.7” x 9.8” x 8.6”
Work tank inside dimensions35.2” x 25.5”
Maximum workpiece weight990 Lbs.
Maximum taper±20° @ 3.1”
